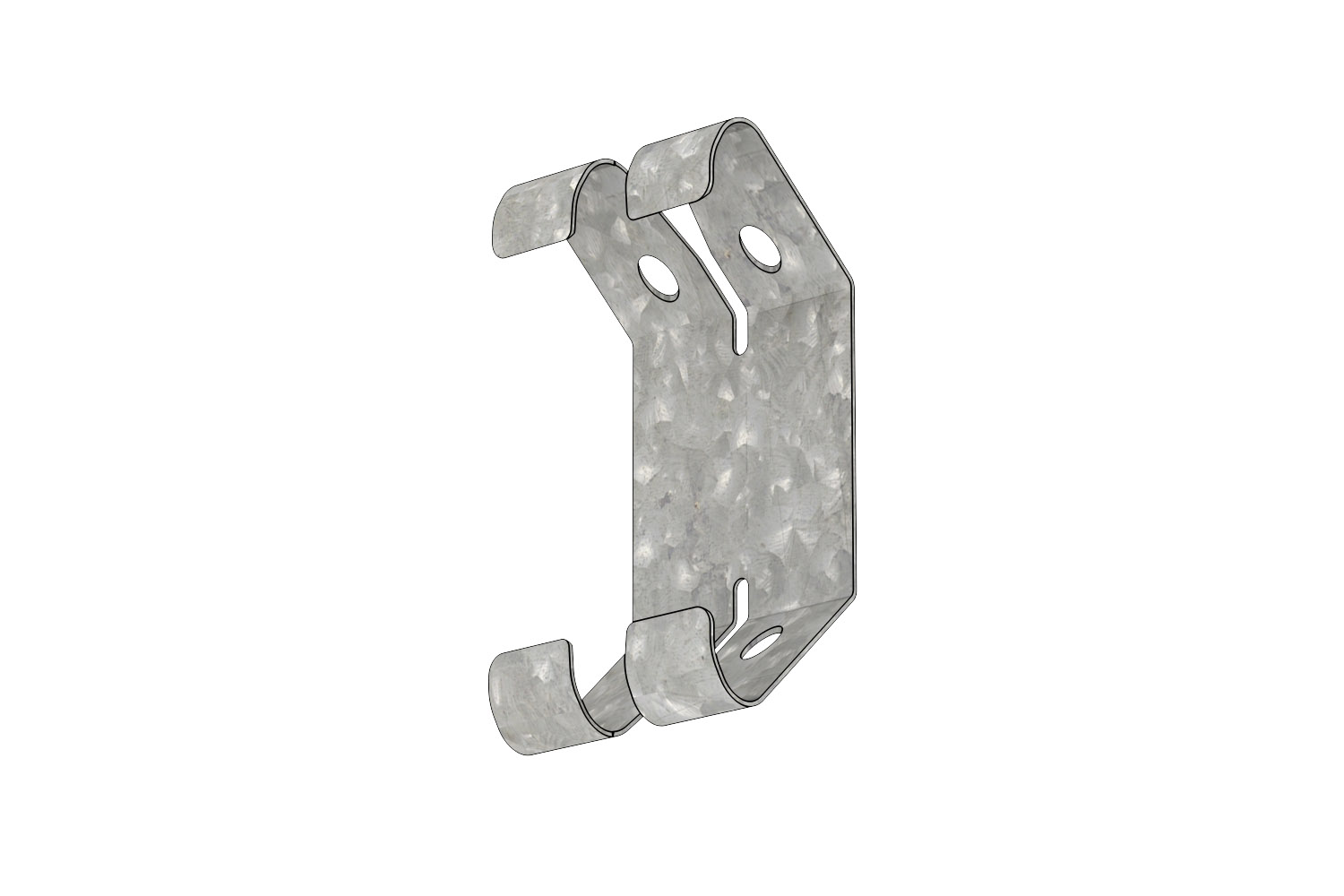

Adjustable Butterfly Clips - RHCLIP-UK

USG Adjustable Butterfly Clips, used to hang the suspension systems for the exposed ceiling grid and the concealed suspension for both Metal ceiling and Drywall ceiling, 0.3 mm thick with Zinc coating 180 g/m².
Thickness
0.3
Zinc Coating
180


Add to Bucket
Performance & Specifications Product Items Documents & Files
Features
  • Large wafer head
  • Philips head recess
  • Special drill point
  • Anti corrosion treatment by zinc coating
  • Available in 10h, 48h and 100h salt spray test
Specifications
Physical Properties
  • Electro Plated Zinc Coated Double Spring Adjustment Clip made from 0.5 mm (Gauge 25) thick Spring Steel
  • Sizes: 18 mm X 30 mm X 55 mm, Hole Diameter 4 mm
  • ASTM & Code Standards: Butterfly Clips are designed, manufactured and installed in full compliance with BS EN 13964:2004 A1:2006, Corrosion Protection to EN 2081:2008 Class D
  • Green Benefits and Recycled Content: LEED Credit MR 2 – USG Boral products are manufactured from cold formed steel. Steel is 100% recyclable, which helps divert debris from the waste stream
  • LEED Credit MR 4 – USG Boral steel products have a minimum of 25.5% postconsumer recycled content, and 6.8% pre-consumer.
Catalogue

Item

Thickness

Zinc Coating

RHCLIP-UK
0.3
180
Order Sample
Technical Datasheet
Rod-Hangers-and-Butterfly-clips-TDS
