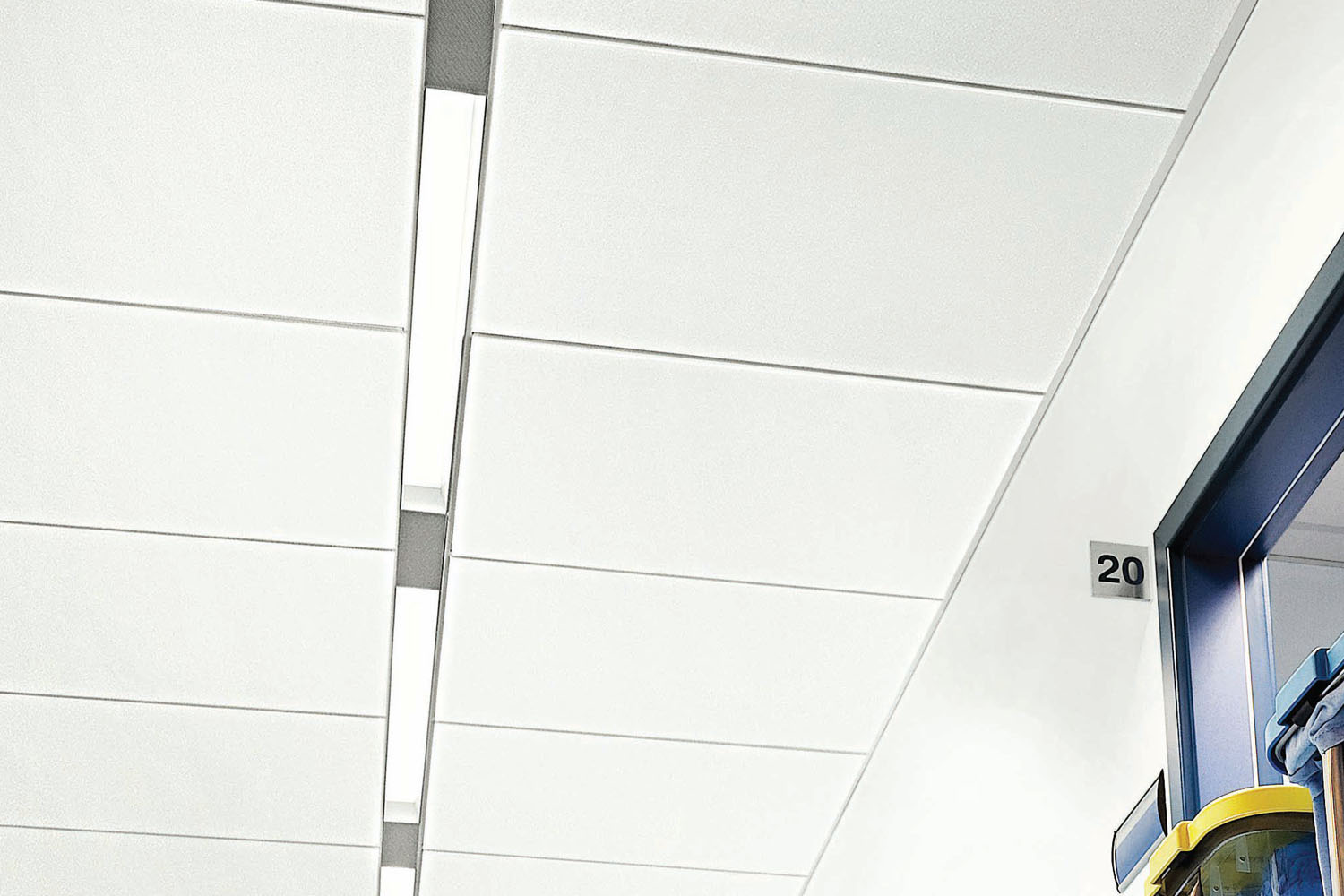

Sonata Healthcare Acoustical Ceiling - SC669HC

Create environmentally friendly healthcare spaces that brighten even the shortest of hospital stays.


Add to Bucket
Performance & Specifications Product Items Documents & Files Cad & Revit Installation
Features
  • Sonata healthcare in normal condition face and back is ISO 4 according to the norm ISO 14644-1 : 2015
  • Vibrations face and back is ISO 4 according to the norm ISO 14644-1 : 2015
  • The microbiological class according to the norm NF S 90-351 : 2013 is as following: M100 / area 2 (Acinetobacter baumannii), M1 / area 4 (Staphylococcus aureus MRSA, Bacillus cereus, Streptococcus pneumoniae, Escherichia coli, Candida albicans), <1 / area 2,3,4 (Aspergillus brasiliensis)
  • Recommended to be used with AXCE grid (gasketed tee flanges) for hospitals restricted and semi restricted areas

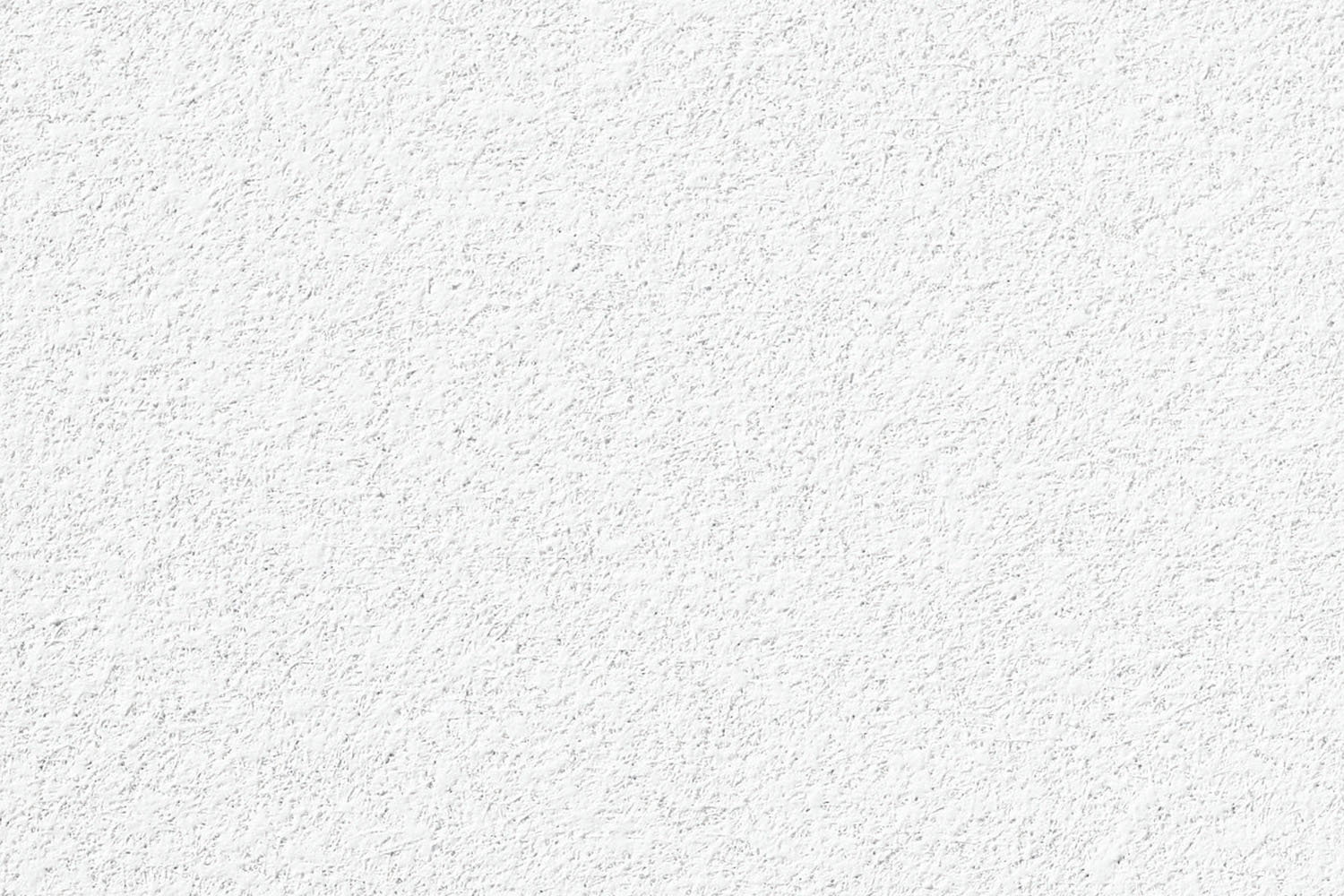

  • Fine, monolithic texture Industry’s highest light reflectance LR 0.89 reduces light fixtures and energy use is part of Indirect lighting
  • Water repellent membrane on both top and back surfaces
  • High Impact and scratch resistance, durable and cleanable surface
  • Available in High NRC formulation and in optimized recycled content formulations to help maximize LEED recycled content contribution
  • Washable and scrubbable finish
Specifications
Physical Properties
  • Materials Classification: Type: III, Form: 2, Pattern: E, G
  • Substrate and Surface Finish: Mineral Fiber substrate laminated with fiberglass scrim with factory-applied latex paint
  • Thickness: 19mm, 22mm
  • Size: 600 x 600mm, 610 x 610mm, 600 x 1200mm, 610 x 1220mm
  • Edge Detail Trim: Square, Reveal [SLT, FLB]
  • Weight: 19mm [4.75 kg/m², Regular/ ClimaPlus], 22mm [5.5 kg/m² Regular/ ClimaPlus]
  • Noise Reduction Coefficient [NRC]: [0.75] [0.80] [0.85]
  • Ceiling Attenuation Class [CAC]: [37 dB] [40 dB]
  • Clean Room Classification as per ISO 14644-1: ISO 4
  • Mold Prevention Application as per ASTM D3273: Rate 10
  • Humidity Resistance: Maximum 99% RH / 40°C for ClimaPlus
  • Light Reflectance Coefficient [LR]: 0.89
  • Color: White similar to RAL 9016
  • Surface Burning Characteristics as per ASTM E84: Class A, Flame Spread: 20, Smoke development: 70
  • Reaction to Fire as per EN 13501-1: Euroclass A2-S1,D0
  • Fire Rating as per ASTM E119: 2hrs Time-Rated Assembly [J201]
  • Thermal Resistance: 19mm [0.31 m² °K/W - R 1.8], 22mm [0.34 m² °K/W]
  • Washability / Scrubbability as per ASTM D4828 & D2486: Exceeds 1000 Wash/Scrub cycles without surface break or the extent of abrasion upon request
  • VOC Class: Green Guard Gold
  • Relevant LEED Credit: EA Credit 1 | MR Credit 4| MR Credit 5 | MR Credit 6 IEQ Credit 3 | IEQ Credit 3.2 | IEQ Credit 4.6 | IEQ Credit 8.1 | IEQ Credit 9
Applications as per 2018 FGI guidelines
  • Central Sterile Supply
  • Class 1 MRI & Imaging Rooms
  • Class 2 MRI & Imaging Rooms
  • Clean Corridors
  • Corridors
  • Decontamination Rooms
  • Endoscope Processing Rooms
  • Food Preparation
  • Food Storage
  • Laboratories
  • Laundry Areas
  • Nurse’s Stations
  • Patient Rooms
  • Pharmacies
  • Treatment/Procedure Rooms
Catalogue

Item

Size

Color

Edges

CAC

NRC

SC669HC
600*600*19
White
SQ
37
0.75
Order Sample
SC229HC
610*610*19
White
SQ
37
0.75
Order Sample
SC629HC
600*1200*19
White
SQ
37
0.75
Order Sample
SC249HC
610*1220*19
White
SQ
37
0.75
Order Sample
SC6622HC
600*600*22
White
SQ
40
0.8
Order Sample
SC2222HC
610*610*22
White
SQ
40
0.8
Order Sample
SCR669HC
600*600*19
White
SLT
37
0.75
Order Sample
SCR229HC
610*610*19
White
SLT
37
0.75
Order Sample
SCR629HC
600*1200*19
White
SLT
37
0.75
Order Sample
SCR249HC
610*1220*19
White
SLT
37
0.75
Order Sample
SCR6622HC
600*600*22
White
SLT
40
0.8
Order Sample
SCR2222HC
610*610*22
White
SLT
40
0.8
Order Sample
SCRF669HC
600*600*19
White
FLB
37
0.75
Order Sample
SCRF229HC
610*610*19
White
FLB
37
0.75
Order Sample
SCRF629HC
600*1200*19
White
FLB
37
0.75
Order Sample
SCRF249HC
610*1220*19
White
FLB
37
0.75
Order Sample
SCRF6622HC
600*600*22
White
FLB
40
0.8
Order Sample
SCRF2222HC
610*610*22
White
FLB
40
0.8
Order Sample
