DX®/DXL®T15 Centricitee – Fire Rated Acoustical Suspension System - DX-DXL-T15-HD-FR-KIT-FW

This ceiling suspension system has an innovative, proprietary self-centering device built into each runner, preventing panel lip-out.
Thickness
0.4mm
Duty
Heavy
Color
Flat white Grey Black Flat black Limed oak classic beech Exotic walnut
Fire
Yes


Add to Bucket
Performance & Specifications Product Items Documents & Files Installation
Features
  • Main tees are designed to expand at the fire lance in the event of a fire. This maintains the structural integrity of the ceiling and holds tiles in place
  • DONN® Brand DX®/DXL™ T24 Heavy Duty - Fire Rated feature a body and cap made of G30 hot-dip galvanized steel with prepainted 24mm width capping to ensure that the cap remains attractive and rust-free
  • Four-step coating process that outperforms in paint adhesion and corrosion resistance, as proven by industry-standard salt spray tests conducted by an Independent laboratory
  • Safe, fast and simple to install & easily accessible
  • Maximum economy and design simplicity
  • Cross-tees with override-ends resist twisting and give professionally finished look with no exposed steel edges
  • Patented QUICK-RELEASETM clip design: demountable without tools

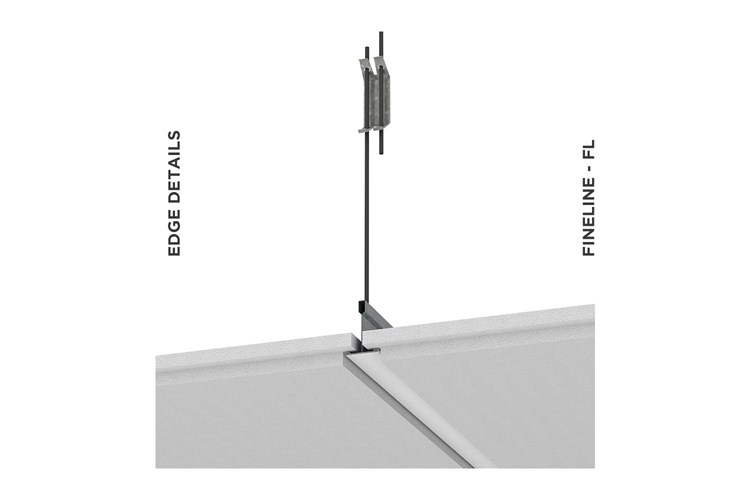

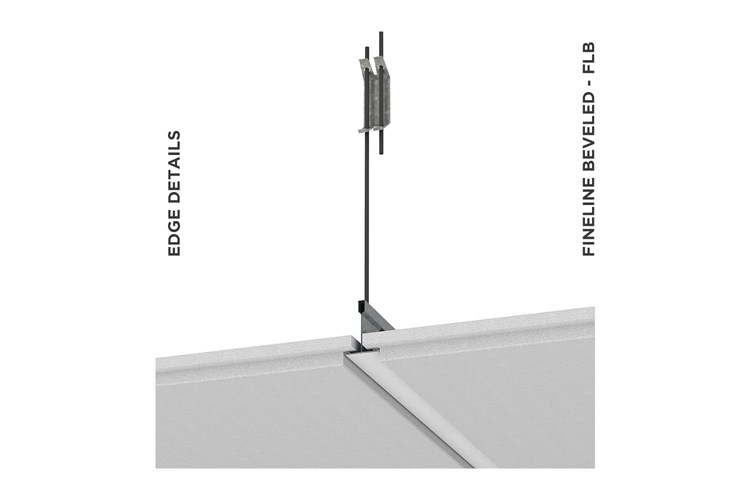

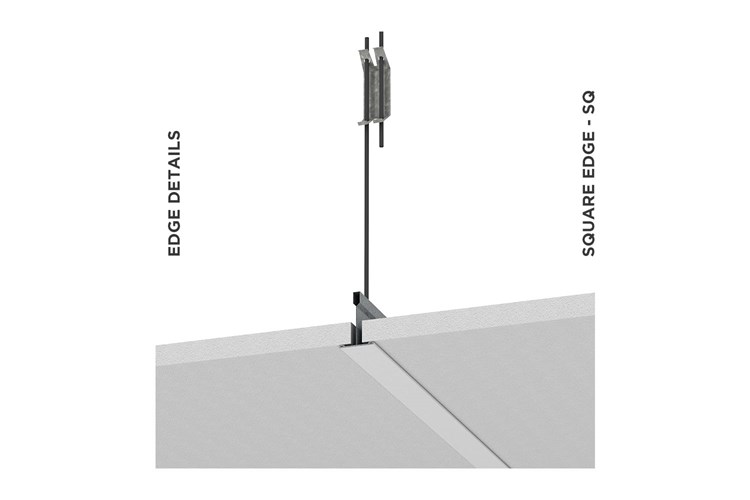

  • Compatible with Square, FLB and FL ceiling tiles edges
  • Audible Click means you know when tees are connected
  • Exceed load compliance specifications as per ASTM C 635
  • Available in metric and imperial sizes
Specifications
Physical Properties
  • Body Materials: HDG Steel

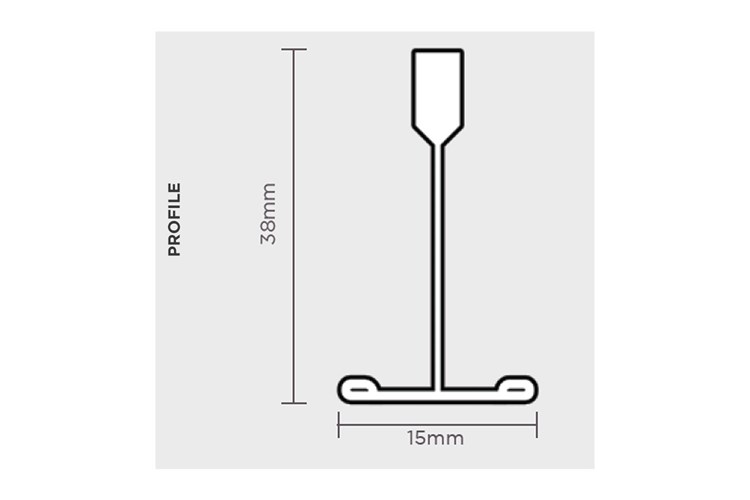

  • Cross section height: 38mm
  • Capping Materials: Pre-painted steel, Aluminum, Cap is optional for additional corrosion, humidity resistance
  • Fire Rated Design: Class A
  • Colors: White RAL 9016, others available upon request
Sustainability
  • Greater than 50% Recycled Content (HRC)
Applications
  • Fire-rated interior general-use area
  • Logix™ Integrated Ceiling Systems
Catalogue

Item

Thickness

Duty

Color

Fire

DX-DXL-T15-HD-FR-KIT-FW
0.4mm
Heavy
Flat white
Yes
Order Sample
DX-DXL-T15-HD-FR-KIT-GRY
0.4mm
Heavy
Grey
Yes
Order Sample
DX-DXL-T15-HD-FR-KIT-B
0.4mm
Heavy
Black
Yes
Order Sample
DX-DXL-T15-HD-FR-KIT-FB
0.4mm
Heavy
Flat black
Yes
Order Sample
DX-DXL-T15-HD-FR-KIT-LOK
0.4mm
Heavy
Limed oak
Yes
Order Sample
DX-DXL-T15-HD-FR-KIT-CLB
0.4mm
Heavy
classic beech
Yes
Order Sample
DX-DXL-T15-HD-FR-KIT-EXW
0.4mm
Heavy
Exotic walnut
Yes
Order Sample
801DXLT15-3600
0.4mm
Heavy
Flat white
Yes
Order Sample
803DXT15-1200H38
0.4mm
Heavy
Flat white
Yes
Order Sample
803DXT15-600H38
0.4mm
Heavy
Flat white
Yes
Order Sample
802MT15-3600
0.4mm
Heavy
Flat white
Yes
Order Sample
802MS164L
0.4mm
Heavy
Flat white
Yes
Order Sample
Technical Datasheet
USG-ME-DONN-Brand-DX-DXL-T15-Centricitee-Fire-Rated-Acoustical-Suspension-System-(TDS)
Add to my submittals
Safety Datasheet
DONN-DX-DXL-Acoustical-Suspension-System-(SDS)
Add to my submittals
Installation Manual
Grids-and-Suspensions-Installation-(LAY-IN)
Add to my submittals
System Catalogue
USG-Grids-and-Suspensions-Catalogue
Add to my submittals
Warranty
Grids-and-Suspensions-Warranty
Add to my submittals
Products Portfolio
Ceiling-2018-2019-USG-Boral-ME-Ceiling-(Products-Portfolio)
Add to my submittals
Company Profile
USG ME Profile
Add to my submittals
