DX®/DXL®T24 Heavy Duty - Fire Rated Acoustical Suspension System - DX-DXL-T24-HD-FR-KIT-FW

The most widely used heavy duty fire rated acoustical suspension system available, this economical, simple and versatile system allows for maximum access.
Thickness
0.4mm
Duty
Heavy
Color
Flat white Grey Black Flat black Limed oak classic beech Exotic walnut
Fire
Yes


Add to Bucket
Performance & Specifications Product Items Documents & Files Installation
Features
  • Main tees are designed to expand at the fire lance in the event of a fire. This maintains the structural integrity of the ceiling and holds tiles in place
  • DONN® Brand DX®/DXL™ T24 Heavy Duty - Fire Rated feature a body and cap made of G30 hot-dip galvanized steel with prepainted 24mm width capping to ensure that the cap remains attractive and rust-free
  • Four-step coating process that outperforms in paint adhesion and corrosion resistance, as proven by industry-standard salt spray tests conducted by an Independent laboratory
  • Safe, fast and simple to install & easily accessible
  • Maximum economy and design simplicity
  • Cross-tees with override-ends resist twisting and give professionally finished look with no exposed steel edges
  • Patented QUICK-RELEASETM clip design: demountable without tools

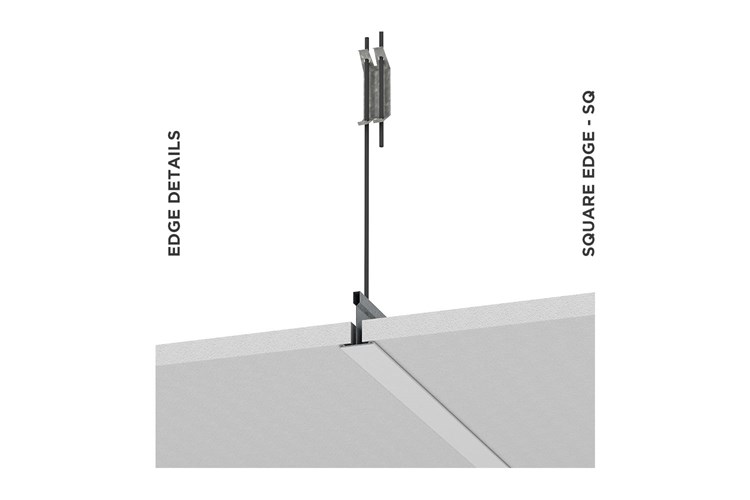

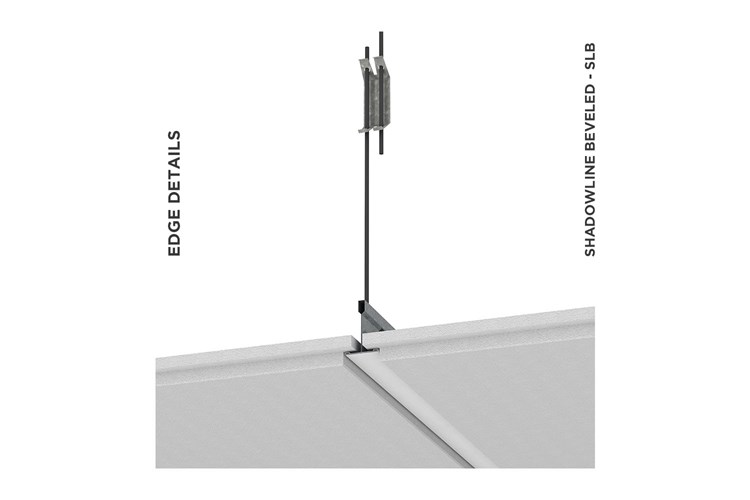

  • Compatible with Square, SLT and SLB ceiling tiles edges
  • Audible Click means you know when tees are connected
  • Exceed load compliance specifications as per ASTM C 635
  • Available in metric and imperial sizes
Specifications
Physical Properties
  • Body Materials: HDG Steel

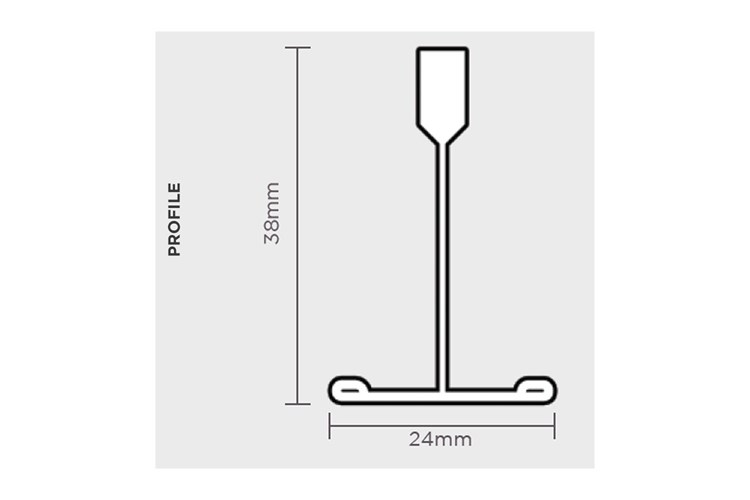

  • Cross section height: 38mm
  • Capping Materials: Pre-painted steel, Aluminum, Cap is optional for additional corrosion, humidity resistance
  • Fire Rated Design: Class A
  • Colors: White RAL 9016, others available upon request
Sustainability
  • Greater than 50% Recycled Content (HRC)
Applications

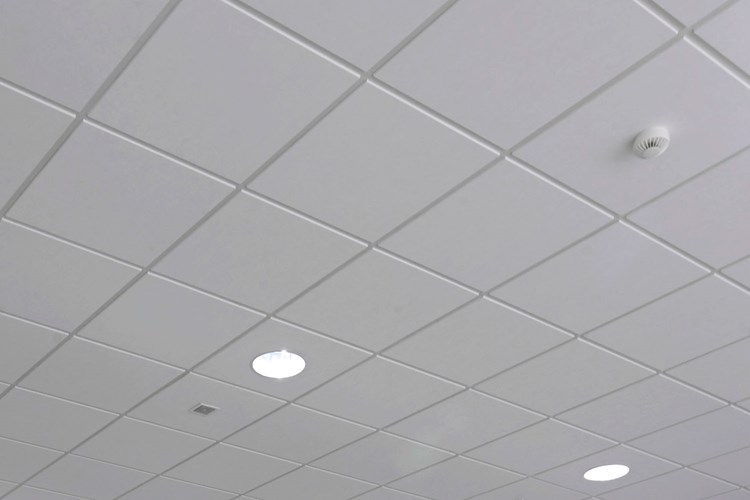

  • Fire-rated interior general-use area
  • Logix™ Integrated Ceiling Systems
Catalogue

Item

Thickness

Duty

Color

Fire

DX-DXL-T24-HD-FR-KIT-FW
0.4mm
Heavy
Flat white
Yes
Order Sample
DX-DXL-T24-HD-FR-KIT-GRY
0.4mm
Heavy
Grey
Yes
Order Sample
DX-DXL-T24-HD-FR-KIT-B
0.4mm
Heavy
Black
Yes
Order Sample
DX-DXL-T24-HD-FR-KIT-FB
0.4mm
Heavy
Flat black
Yes
Order Sample
DX-DXL-T24-HD-FR-KIT-LOK
0.4mm
Heavy
Limed oak
Yes
Order Sample
DX-DXL-T24-HD-FR-KIT-CLB
0.4mm
Heavy
classic beech
Yes
Order Sample
DX-DXL-T24-HD-FR-KIT-EXW
0.4mm
Heavy
Exotic walnut
Yes
Order Sample
801DXL3600
0.4mm
Heavy
Flat white
Yes
Order Sample
803DX1200H38
0.4mm
Heavy
Flat white
Yes
Order Sample
804DX600H38
0.4mm
Heavy
Flat white
Yes
Order Sample
802MT3600
0.4mm
Heavy
Flat white
Yes
Order Sample
802MS3600
0.4mm
Heavy
Flat white
Yes
Order Sample
802MS164L
0.4mm
Heavy
Flat white
Yes
Order Sample
