DX®/DXH33® T24 Intermediate Duty Acoustical Suspension System - DX-DXL-T24-IMD-KIT-FW

The most widely used intermediate duty acoustical suspension system available, this economical, simple and versatile system allows for maximum access.
Thickness
0.3mm
Duty
Intermediate
Color
Flat white Grey Black Limed oak classic beech Exotic walnut
Fire
No


Add to Bucket
Performance & Specifications Product Items Documents & Files Installation
Features
  • DONN® Brand DX®/DXL™ T24 Intermediate Duty feature a body and cap made of G30 hot-dip galvanized steel with pre-painted 24mm width capping to ensure that the cap remains attractive and rust-free
  • Four-step coating process that outperforms in paint adhesion and corrosion resistance, as proven by industry-standard salt spray tests conducted by an Independent laboratory
  • Safe, fast and simple to install & easily accessible
  • Maximum economy and design simplicity
  • Cross-tees with override-ends resist twisting and give professionally finished look with no exposed steel edges
  • Patented QUICK-RELEASETM clip design: demountable without tools

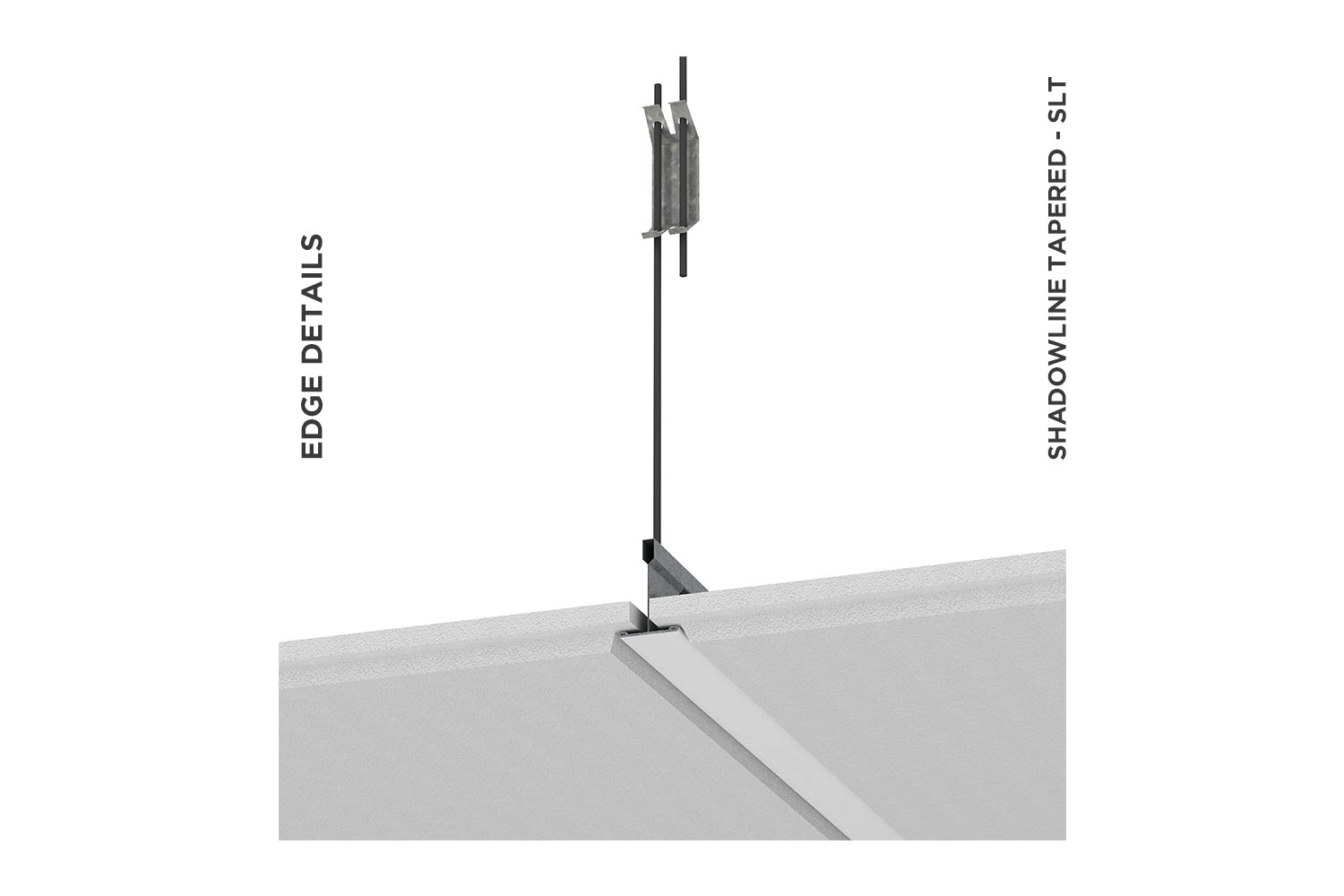

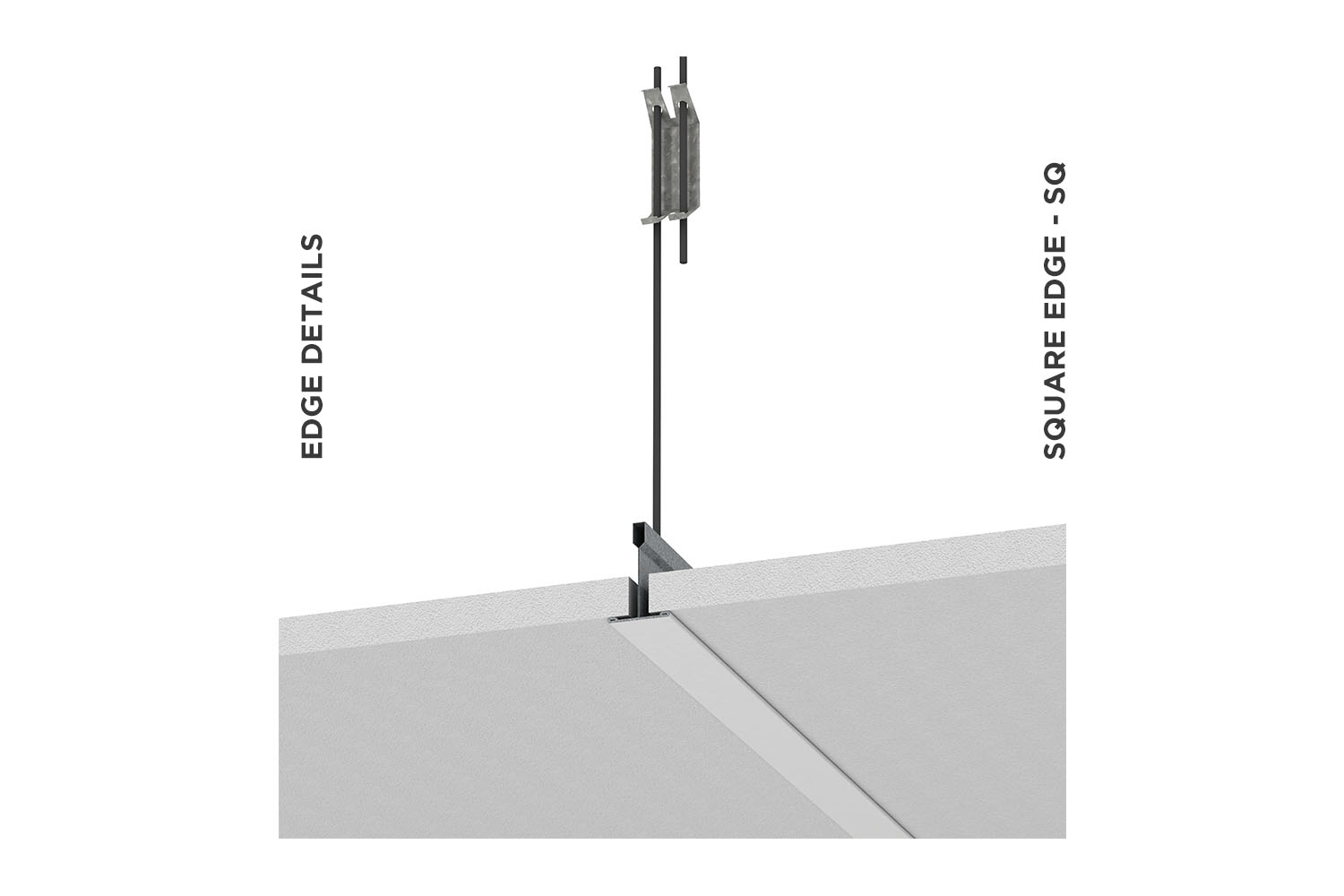

  • Compatible with Square, SLT and SLB ceiling tiles edges
  • Audible Click means you know when tees are connected
  • Exceed load compliance specifications as per ASTM C 635
  • Available in metric and imperial sizes
Specifications
Physical Properties
  • Body Materials: HDG Steel

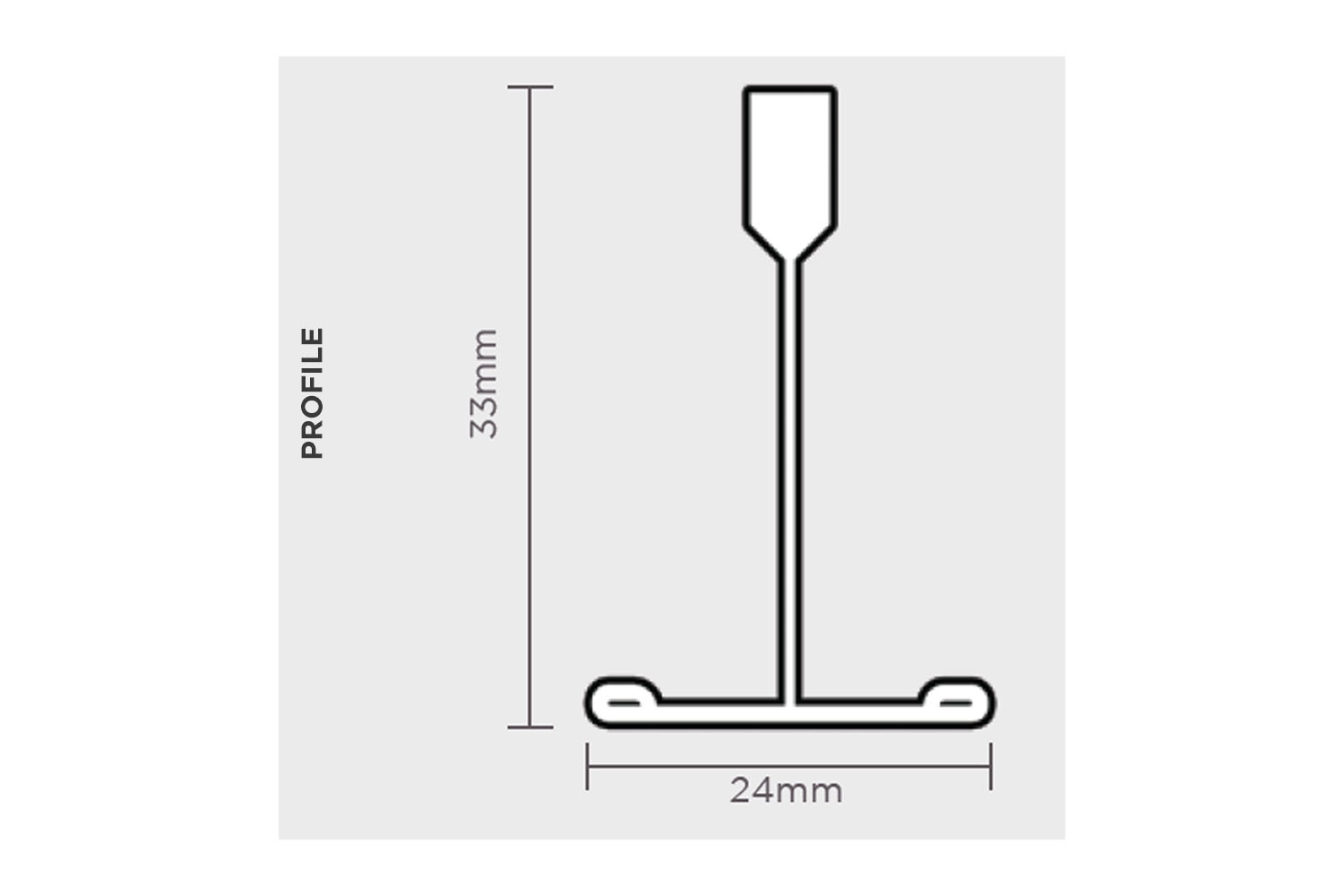

  • Cross section height: 33mm
  • Capping Materials: Pre-painted steel, Aluminum, Cap is optional for additional corrosion, humidity resistance
  • Colors: White RAL 9016, others available upon request
Sustainability
  • Greater than 50% Recycled Content (HRC)
Applications

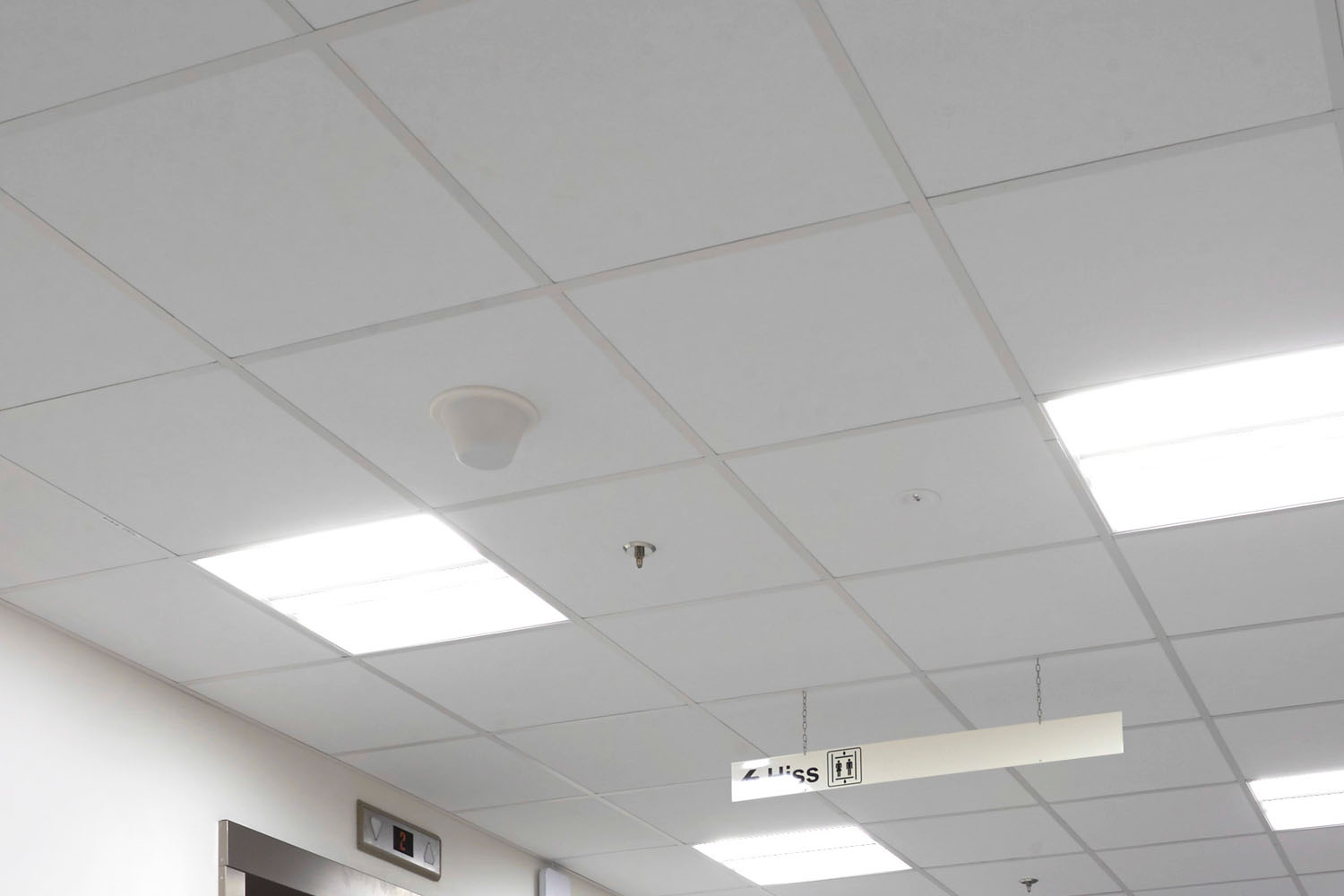

  • Interior general-use area
  • Logix™ Integrated Ceiling Systems
Catalogue

Item

Thickness

Duty

Color

Fire

DX-DXL-T24-IMD-KIT-FW
0.3mm
Intermediate
Flat white
No
Order Sample
DX-DXL-T24-IMD-KIT-GRY
0.3mm
Intermediate
Grey
No
Order Sample
DX-DXL-T24-IMD-KIT-B
0.3mm
Intermediate
Black
No
Order Sample
DX-DXL-T24-IMD-KIT-LOK
0.3mm
Intermediate
Limed oak
No
Order Sample
DX-DXL-T24-IMD-KIT-CLB
0.3mm
Intermediate
classic beech
No
Order Sample
DX-DXL-T24-IMD-KIT-EXW
0.3mm
Intermediate
Exotic walnut
No
Order Sample
801DX3600H33
0.3mm
Intermediate
Flat white
No
Order Sample
803DX1200H25
0.3mm
Intermediate
Flat white
No
Order Sample
803DX600H25
0.3mm
Intermediate
Flat white
No
Order Sample
802MT3600
0.3mm
Intermediate
Flat white
No
Order Sample
802MS3600
0.3mm
Intermediate
Flat white
No
Order Sample
802MS164L
0.3mm
Intermediate
Flat white
No
Order Sample
