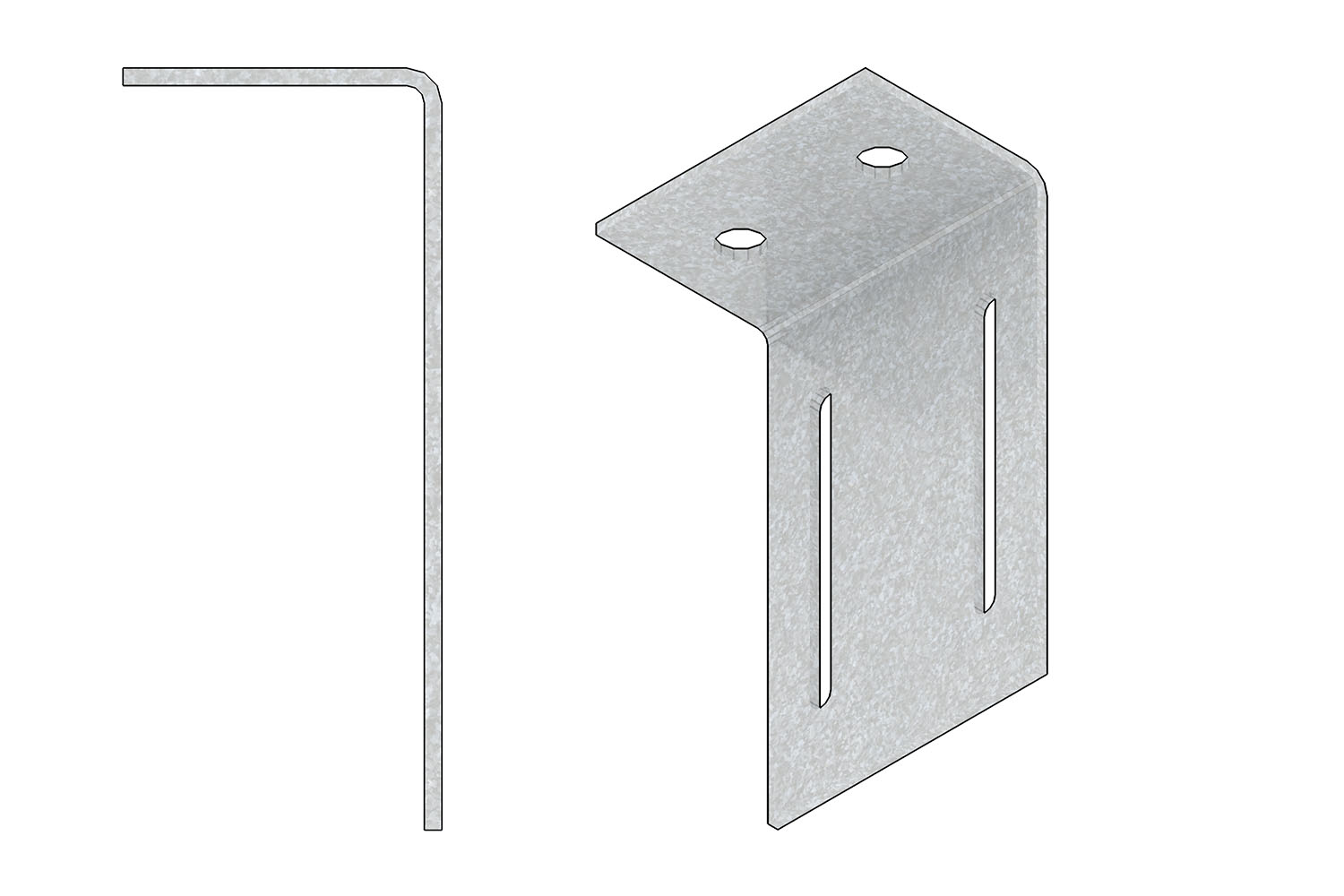

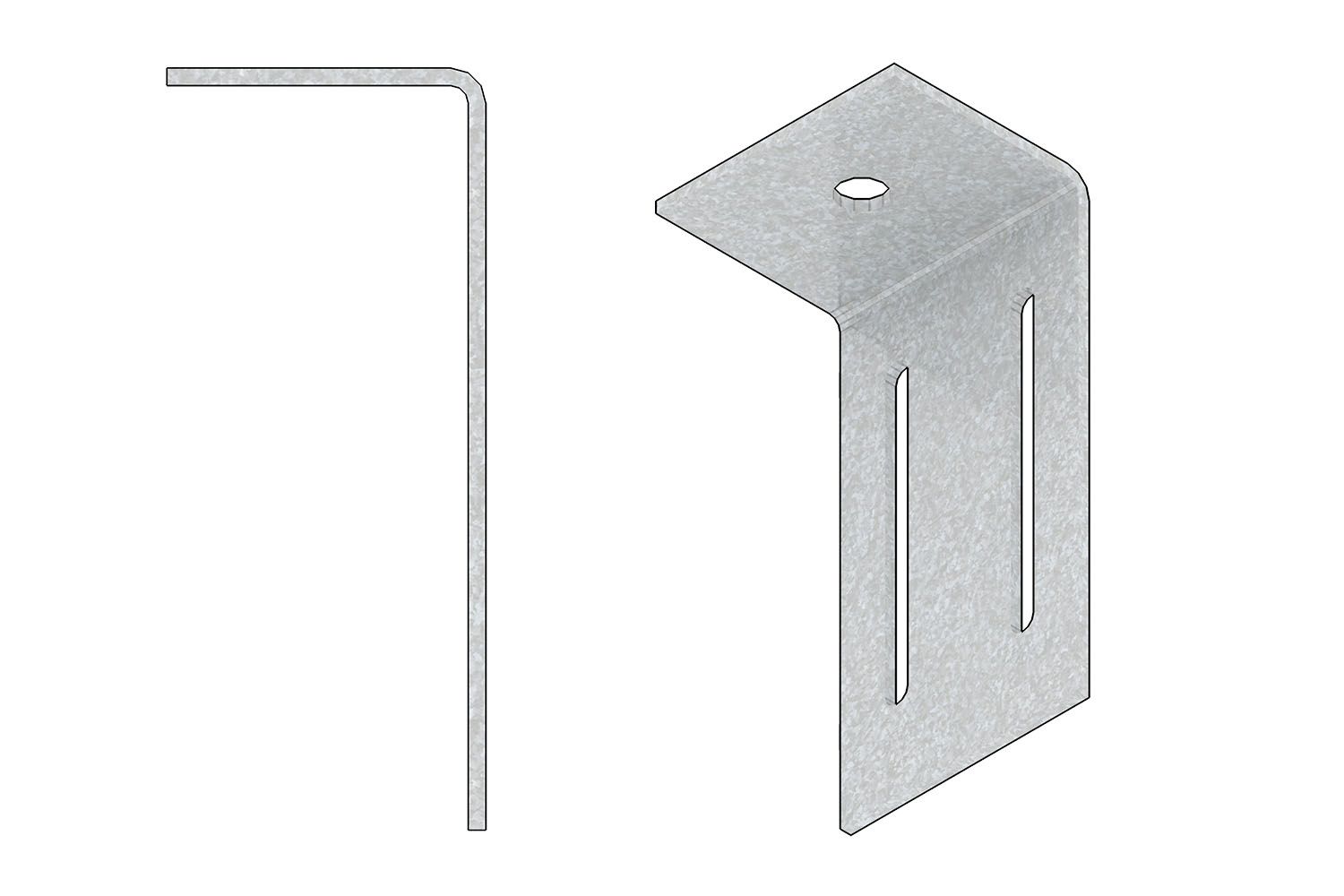

Deflection Clips - DC50125100-3

USG Deflection Clips, used in place or in combination with deflection Track and allowing for vertical movement above drywall partitions, 3 mm thick with Zinc coating 180-270 g/m².
Thickness
3.0
Zinc Coating
270


Add to Bucket
Performance & Specifications Product Items Documents & Files
Features
  • Large wafer head
  • Philips head recess
  • Special drill point
  • Anti corrosion treatment by zinc coating
  • Available in 10h, 48h and 100h salt spray test
Specifications
Physical Properties
  • Galvanized steel G90 HDG Steel in 3.0mm Base Material Thickness
  • Slotted Deflection clip
  • Sizes: 65 X 125 X 50 mm - 3 mm thick, 65 x 125 x 80 mm - 3 mm thick
  • Green Benefits and Recycled Content: LEED Credit MR 2 – USG Boral products are manufactured from cold-formed steel. Steel is 100% recyclable, which helps divert debris from the waste stream
  • LEED Credit MR 4 – USG Boral steel products have a minimum of 25.5% post-consumer recycled content, and 6.8% pre-consumer.
Catalogue

Item

Thickness

Zinc Coating

DC50125100-3
3.0
270
Order Sample
DC50125125-3
3.0
270
Order Sample
DC5012550-3
3.0
270
Order Sample
DC5012565-3
3.0
270
Order Sample
DC5012580-3
3.0
270
Order Sample
DC505050-3
3.0
270
Order Sample
DC508050-3
3.0
270
Order Sample
DC508065-3
3.0
270
Order Sample
DC508080-3
3.0
270
Order Sample
