Drywall Shadow Angles - WA2020-045

USG Drywall Shadow Angles, create a reveal edge look at ceiling perimeter installations whilst helping to hide imperfections in the abutting walls, thickness range from 0.45 to 0.6 mm with Zinc coating 180-270 g/m².
Thickness
0.45 0.5 0.55 0.6
Zinc Coating
180


Add to Bucket
Performance & Specifications Product Items Documents & Files
Features
  • Meet or exceed all international code requirements
  • Fully compatible with all standard wall boards
  • Knurled flanges for easier attachment of exposed materials
  • Dimensionally stable with High load bearing capacity
  • Won’t warp, twist or bow
  • Length is optional and can be customized as per customer needs
  • Large range of size and thickness available
  • Available with High Recycled Content (HRC)
Specifications
Physical Properties
  • Galvanized steel G90
  • Pre-painted Steel in 0.45 Base Material Thickness
  • Yield stress, Fy 33 ksi Ultimate

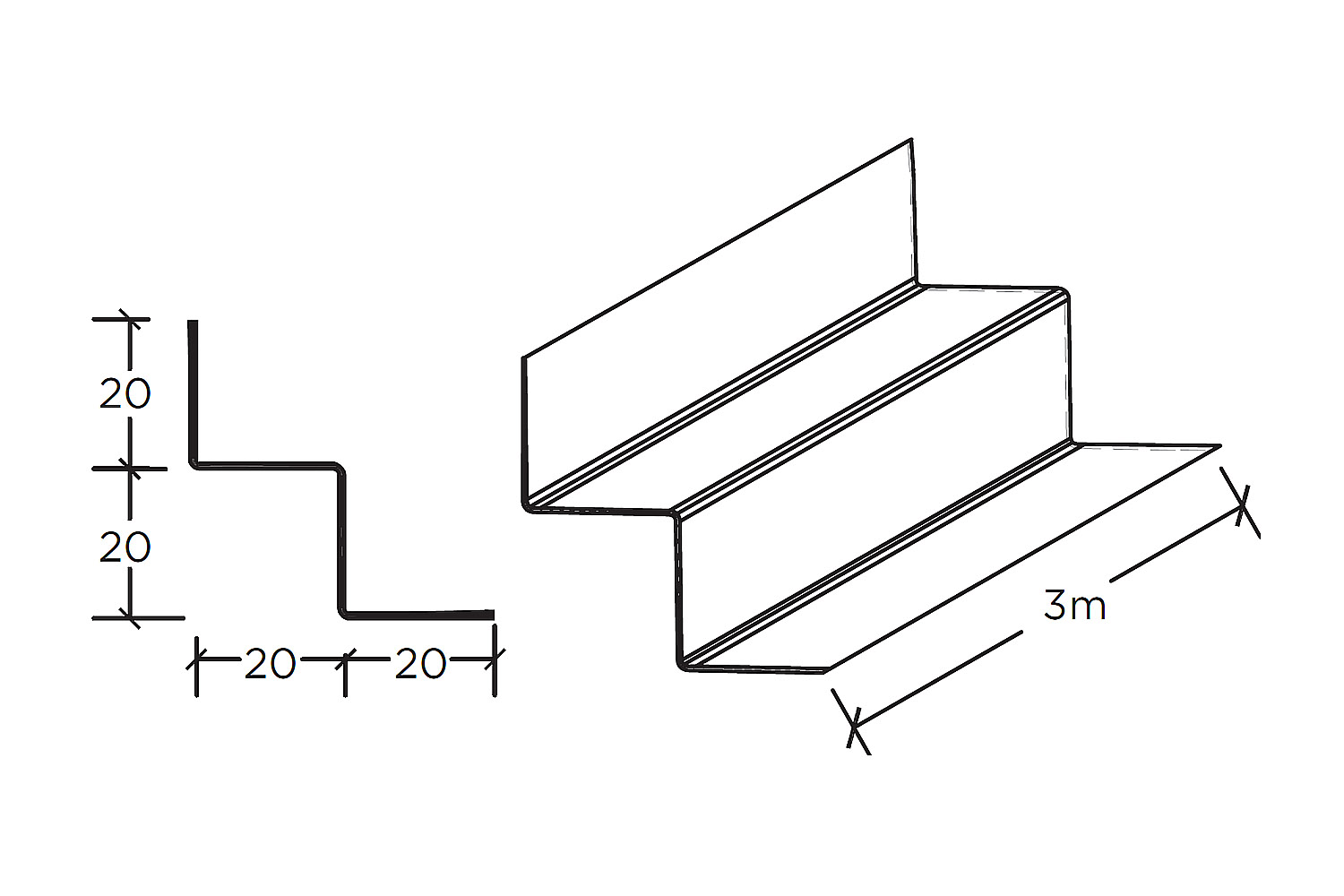

  • Sizes: W-Shape 20X20X20X20 mm, Length: Standard 3,600 mm/3,000 mm, could be made as per customer requirements, Thickness: from 0.45 to 0.90 mm
  • ASTM & Code Standards: Shadow Angles are produced to meet or exceed ASTM C645, C635 and C955
  • Galvanized sheet steel meets or exceeds requirements of ASTM A-653
  • For installation & storage information refer to ASTM C1007 & C754
  • Green Benefits and Recycled Content: LEED Credit MR 2 – USG Boral products are manufactured from cold formed steel. Steel is 100% recyclable, which helps divert debris from the waste stream
  • LEED Credit MR 4 – USG Boral steel products have a minimum of 25.5% postconsumer recycled content, and 6.8% pre-consumer.
Catalogue

Item

Thickness

Zinc Coating

WA2020-045
0.45
180
Order Sample
WA2020-050
0.5
180
Order Sample
WA2020-055
0.55
180
Order Sample
WA2020-060
0.6
180
Order Sample
Technical Datasheet
Drywall-Shadow-Angle-TDS
Add to my submittals
Safety Datasheet
Dry-Wall-Steel-Framed-Systems-SDS
Add to my submittals
Systems Catalogue
Drywall-Systems-catalogue
Add to my submittals
Installation Guide
Dry-Wall-Partitions-Installation-Guide
Add to my submittals
Company Profile
USG ME Profile
Add to my submittals
