Drywall Suspension System Z Channel

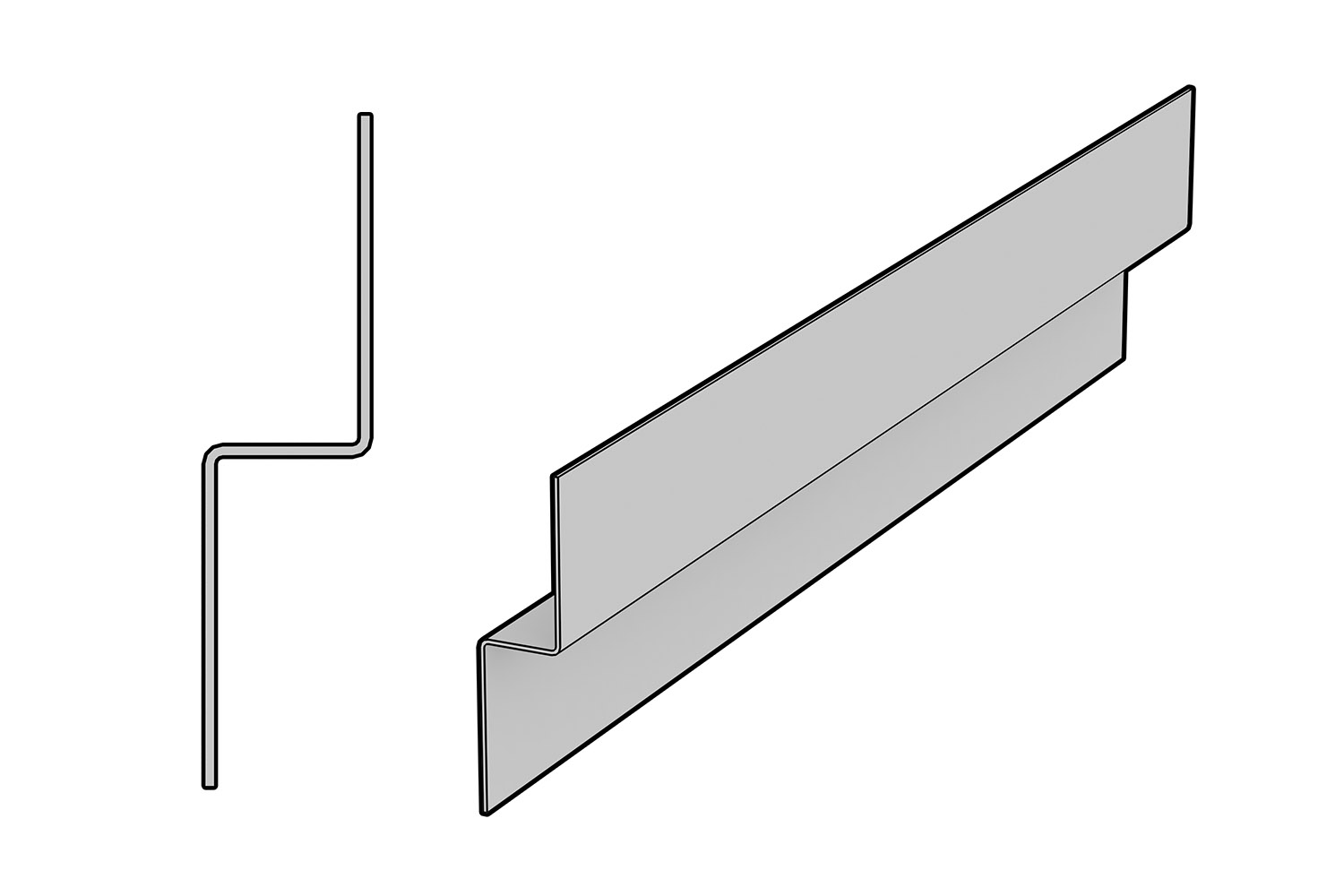

Drywall Suspension System Z Channel - ZC30120-060

USG Drywall Suspension System Z Channel, easily accommodates rigid insulation and provides for the attachment of gypsum wallboard, veneer or plaster to the interior of masonry walls, thickness range from 0.6 to 0.9 mm with Zinc coating 180-270 g/m².

Thickness

0.6 0.7 0.8 0.9

Zinc Coating

180 270

Add to Bucket

Performance & Specifications Product Items Documents & Files

Features

Meet or exceed all international code requirements
Fully compatible with all standard wall boards
Knurled flanges for easier attachment of exposed materials
Dimensionally stable with High load bearing capacity
Won’t warp, twist or bow
Length is optional and can be customized as per customer needs
Large range of size and thickness available
Available with High Recycled Content (HRC)

Specifications

Physical Properties

Galvanized steel G90
Surface: Zinc galvanized
HDG Steel in 0.90/1.2/1.5 mm Base Material Thickness
Yield stress, Fy 41 ksi Ultimate, with G90 Zinc coating
Sizes: 32 x 100 x 32 mm, Length: Standard is 3.0m
ASTM & Code Standards: USG Boral Z-Channels are produced to meet or exceed ASTM C645 and C955
Galvanized sheet steel meets or exceeds requirements of ASTM A-653
For installation & storage information refer to ASTM C1007 & C754
Green Benefits and Recycled Content: LEED Credit MR 2 – USG Boral products are manufactured from cold-formed steel. Steel is 100% recyclable, which helps divert debris from the waste stream
LEED Credit MR 4 – USG Boral steel products have a minimum of 25.5% post-consumer recycled content, and 6.8% pre-consumer.

Catalogue

Drywall-Suspension-System-Z-Channel-TDS

Item

Thickness

Zinc Coating

ZC30120-060

0.6

180

Order Sample

ZC30120-070

0.7

270

Order Sample

ZC30120-080

0.8

270

Order Sample

ZC30120-090

0.9

270

Order Sample

ZC3030-060

0.6

180

Order Sample

ZC3030-070

0.7

270

Order Sample

ZC3030-080

0.8

270

Order Sample

ZC3030-090

0.9

270

Order Sample

ZC2525-060

0.6

180

Order Sample

ZC2525-070

0.7

270

Order Sample

ZC2525-080

0.8

270

Order Sample

ZC2525-090

0.9

270

Order Sample

Technical Datasheet

Drywall-Suspension-System-Z-Channel-TDS

Add to my submittals

Safety Datasheet

Dry-Wall-Steel-Framed-Systems-SDS

Add to my submittals

Systems Catalogue

Drywall-Systems-catalogue

Add to my submittals

Installation Guide

Dry-Wall-Partitions-Installation-Guide

Add to my submittals

Company Profile

USG ME Profile

Add to my submittals
