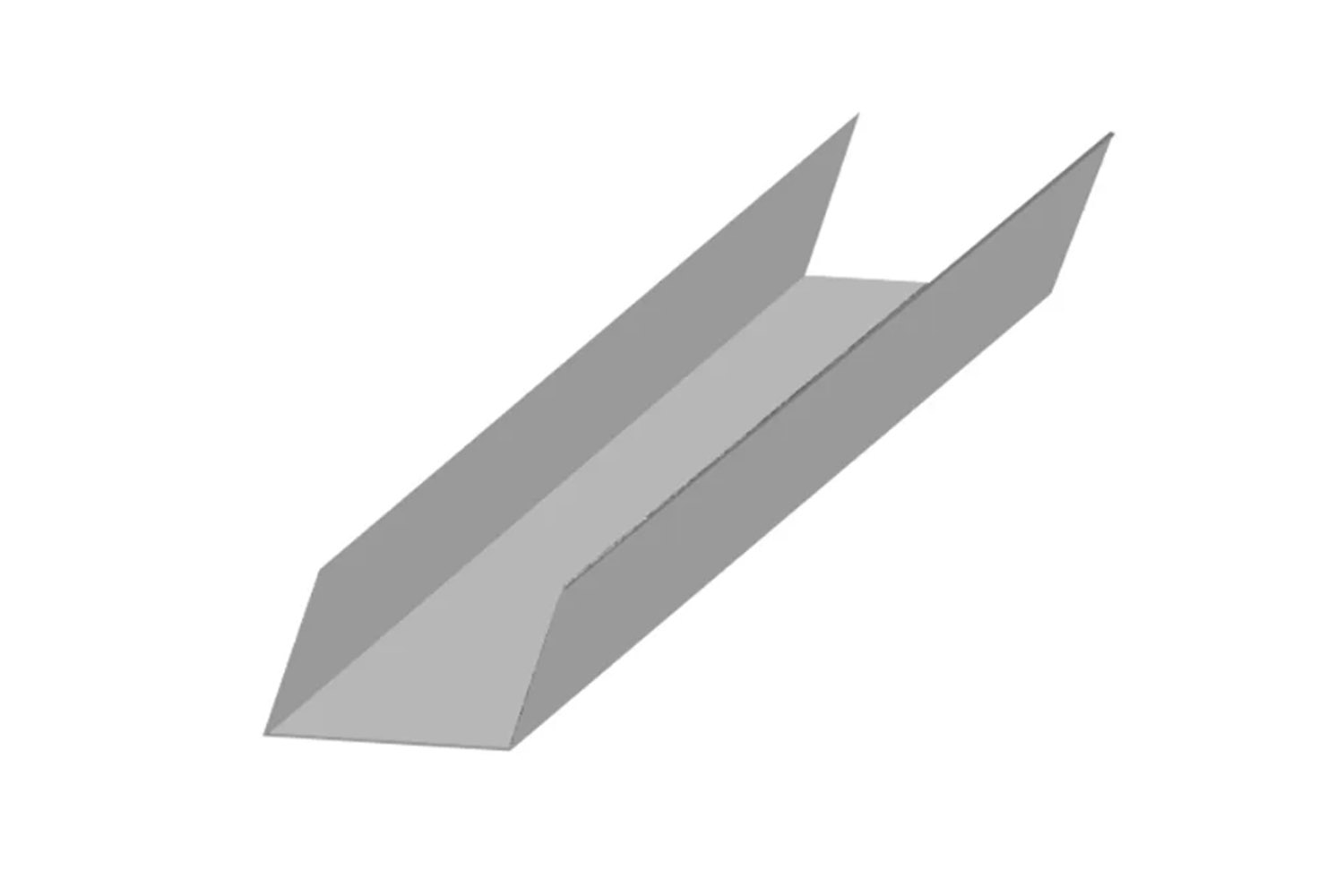

Inclined Track - TRI3050-060

USG Inclined Tracks, used in drywall framing applications for constructing inclined walls, thickness range from 0.6 to 0.9 mm with Zinc coating 180-270 g/m².
Thickness
0.6 0.9
Zinc Coating
180 270


Add to Bucket
Performance & Specifications Product Items Documents & Files
Specifications
Physical Properties
  • Galvanized steel G90
  • Yield stress, Fy 33 ksi Ultimate
  • Sizes: Length: 3,000 mm Standard, Web depth: 50, 64, 75, 92, 100, 125, 150 and 200 mm, Flange: 30 / 30 mm; 50 / 50 mm; 70 / 70 mm, Thickness: 0.60, 0.70, 0.80, 0.90, 1.2, 1.5 and 2.0 mm, Inclination degree: 45 to 89 degree
  • ASTM & Code Standards: Inclined Tracks are produced to meet or exceed ASTM C645 and C955
  • Galvanized sheet steel meets or exceeds requirements of ASTM A-653
  • For installation & storage information refer to ASTM C1007 & C754
  • Green Benefits and Recycled Content: LEED Credit MR 2 – USG products are manufactured from cold-formed steel. Steel is 100% recyclable, which helps divert debris from the waste stream
  • LEED Credit MR 4 – USG’s steel products have a minimum of 25.5% postconsumer recycled content, and 6.8% pre-consumer.
Catalogue

Item

Thickness

Zinc Coating

TRI3050-060
0.6
180
Order Sample
TRI3050-090
0.9
270
Order Sample
TRI3064-060
0.6
180
Order Sample
TRI3064-090
0.9
270
Order Sample
TRI3092-060
0.6
180
Order Sample
TRI3092-090
0.9
270
Order Sample
Technical Datasheet
Inclined-Track-TDS
Add to my submittals
Safety Datasheet
Dry-Wall-Steel-Framed-Systems-SDS
Add to my submittals
Systems Catalogue
Drywall-Systems-catalogue
Add to my submittals
Installation Guide
Dry-Wall-Partitions-Installation-Guide
Add to my submittals
Company Profile
USG ME Profile
Add to my submittals
