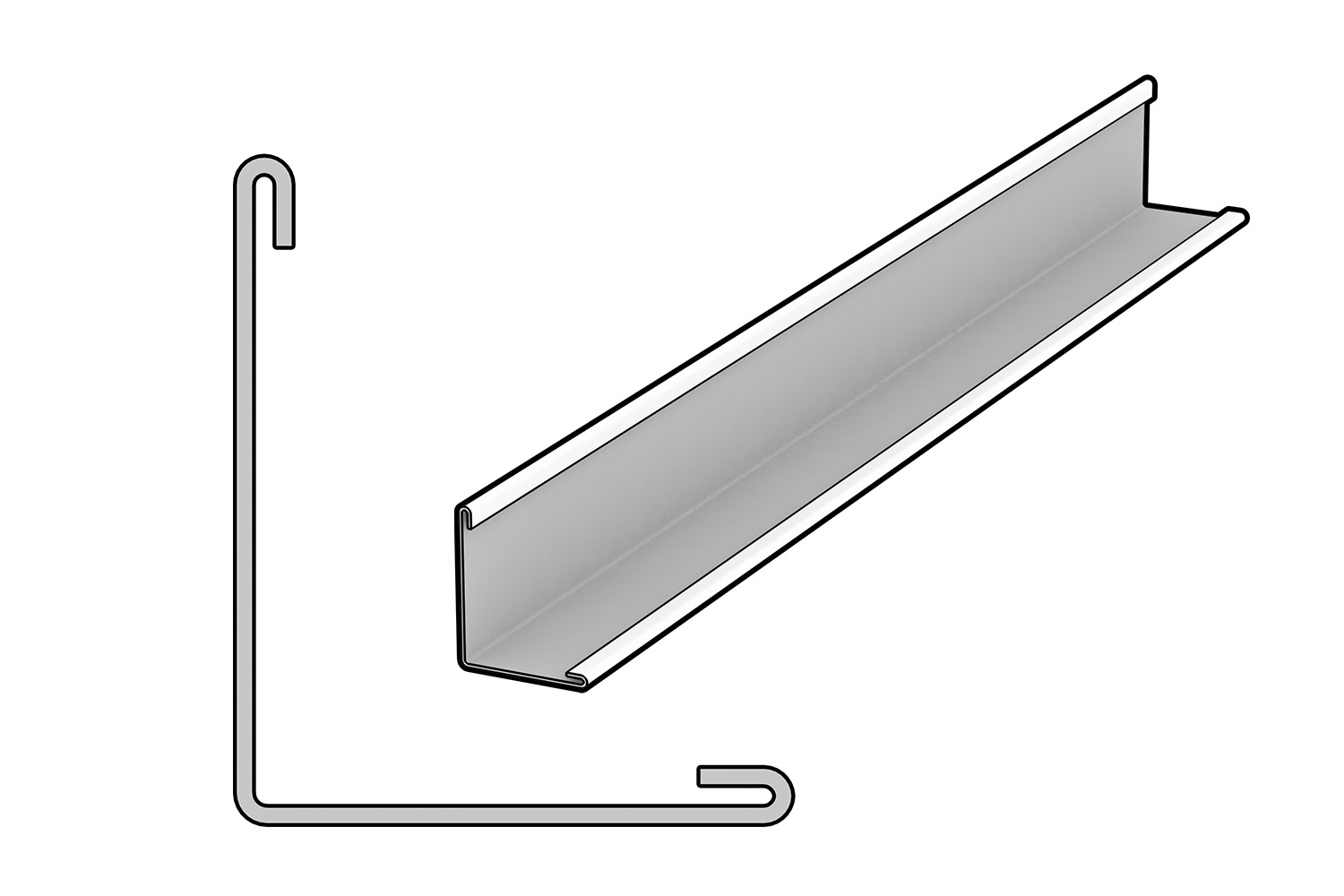

Perimeter Angles - PA2525-045

USG Perimeter Angles, used on the perimeter of the Drywall ceiling suspension systems and optional as suspension hangers, thickness range from 0.45 to 1.5 mm with Zinc coating 180-270 g/m².
Thickness
0.45 0.5 0.55 0.6 0.7 0.8 0.9 1.2 1.5
Zinc Coating
180 270


Add to Bucket
Performance & Specifications Product Items Documents & Files
Features
  • Meet or exceed all international code requirements
  • Fully compatible with all standard wall boards
  • Knurled flanges for easier attachment of exposed materials
  • Dimensionally stable with High load bearing capacity
  • Won’t warp, twist or bow
  • Length is optional and can be customized as per customer needs
  • Large range of size and thickness available
  • Available with High Recycled Content (HRC)
Specifications
Physical Properties
  • Yield stress, Fy 33 ksi Ultimate, with G90 Zinc coating
  • ASTM & Code Standards: Perimeter Channels are produced to meet or exceed ASTM C645 and C955
  • Galvanized sheet steel meets or exceeds requirements of ASTM A-653
  • For installation & storage information refer to ASTM C1007 & C754
  • Green Benefits and Recycled Content: LEED Credit MR 2 – USG Boral products are manufactured from cold formed steel. Steel is 100% recyclable, which helps divert debris from the waste stream
  • LEED Credit MR 4 – USG Boral steel products have a minimum of 25.5% post-consumer recycled content, and 6.8% pre-consumer.
Catalogue

Item

Thickness

Zinc Coating

PA2525-045
0.45
180
Order Sample
PA2525-050
0.5
180
Order Sample
PA2525-055
0.55
180
Order Sample
PA2525-060
0.6
180
Order Sample
PA2525-070
0.7
270
Order Sample
PA2525-080
0.8
270
Order Sample
PA2525-090
0.9
270
Order Sample
PA2525-120
1.2
270
Order Sample
PA2525-150
1.5
270
Order Sample
Technical Datasheet
Perimeter-Angles-TDS
Add to my submittals
Safety Datasheet
Dry-Wall-Steel-Framed-Systems-SDS
Add to my submittals
Systems Catalogue
Drywall-Systems-catalogue
Add to my submittals
Installation Guide
Dry-Wall-Partitions-Installation-Guide
Add to my submittals
Company Profile
USG ME Profile
Add to my submittals
