Shades Gypsum Ceiling - LG-SP6609

High light reflectance and withstanding humid conditions are the properties that add to the growth factor of Shades Star Plus and Plain White Gypsum Ceiling Tiles.


Add to Bucket
Performance & Specifications Product Items Documents & Files Cad & Revit Installation
Features
  • Laminated Gypsum Ceiling with Washable Vinyl facing for easy maintenance

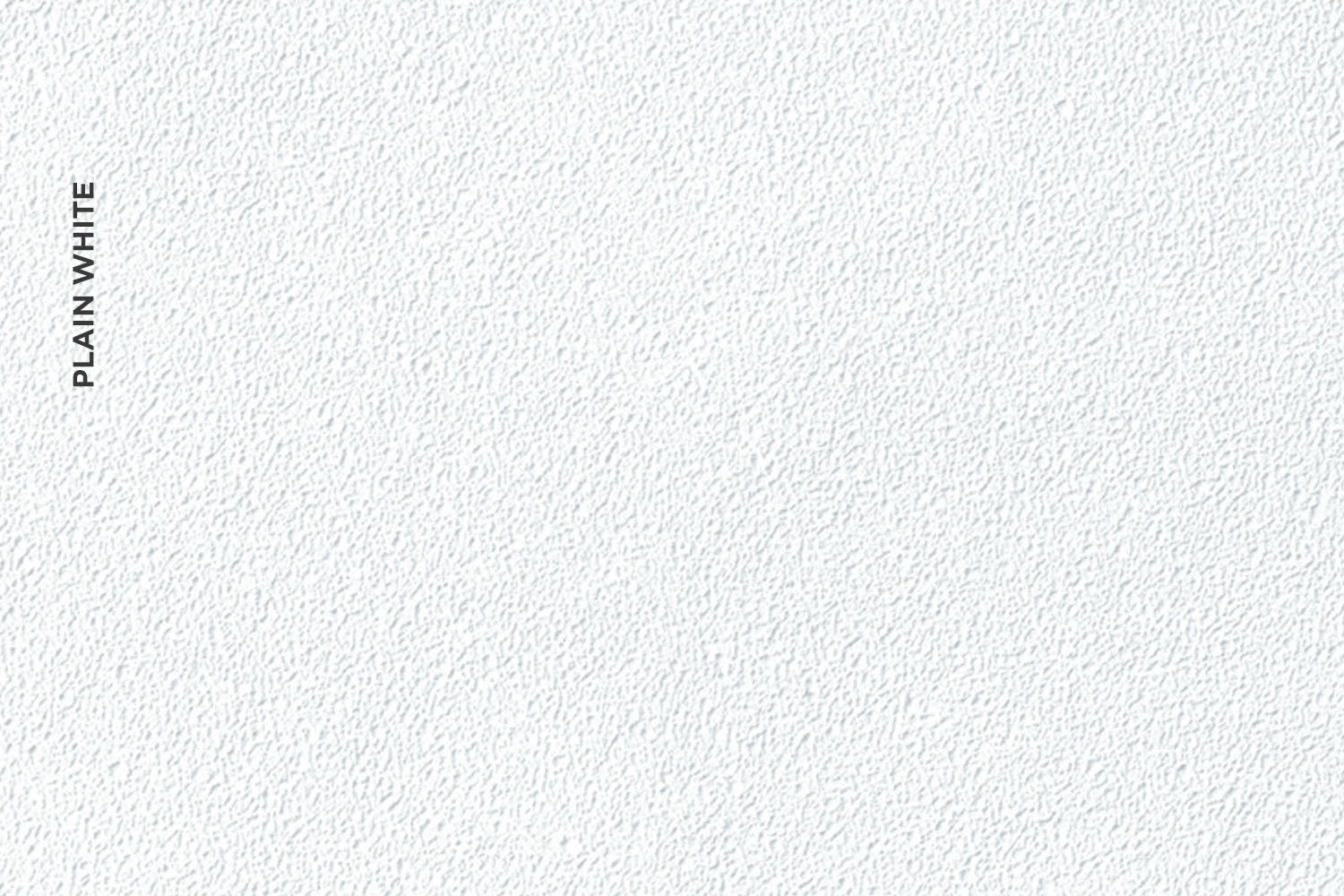

  • Available in plain facings with smooth appearance for plain white pattern and light texture for star plus pattern
  • Ultra-high humidity resistant and sag resistance ensures durability in standard or extreme environmental conditions
  • Can be installed at early construction phase
  • Standard produced with Aluminum Foil backing which acts as a vapor barrier and resists breathing so panel stays cleaner longer
  • Scrub resistant. Dirt marks are easy to remove
  • Durable, Scuff and scratch resistant, for longer life
  • Suitable for areas with High Humidity
  • Economical and easy to trim and install
  • Demountable and designed to be installed on the DONN® Brand ceiling suspensions
Specifications
Physical Properties
  • USG Shades Gypsum Ceiling Tile meets the requirements in accordance with ASTM C367.
  • Thickness: 9.5mm, 12.5mm
  • Size: 600*600mm, 610*610mm, 600*1200mm, 610*1220mm
  • Edge Detail Trim: Square, Reveal [SL, FL]
  • Noise Reduction Coefficient [NRC]: [-]
  • Ceiling Attenuation Class [CAC]: [35 dB] [40 dB]
  • Light Reflectance Coefficient [LR]: 0.84
  • Color: White similar to RAL 9016
  • Surface Burning Characteristics per ASTM E 84: Class A, Flame Spread: 20, Smoke development:35
  • Thermal Resistance: 12.5mm [ R 0.45]
  • Humidity Resistance: Maximum 95% RH / 40°C for ClimaPlus
  • Weight: 9.5mm [7 kg/m²], 12.5mm [10 kg/m²]
  • Mold Prevention: Inherent to Mold/Mildew growth
  • Washability / Scrubbability as per ASTM D4828 & D2486: Exceeds 1000 Wash/Scrub Cycles without surface break or the extent of abrasion
Applications
  • Laboratories
  • Commercial Retails
  • Restrooms / Wet Areas
  • Department Stores
Catalogue

Item

Size

Color

Edges

CAC

NRC

LG-SP6609
600*600*9.5
White
SQ
35
N/A
Order Sample
LG-SP2209
610*610*9.5
White
SQ
35
N/A
Order Sample
LG-PW6609
600*600*9.5
White
SQ
35
N/A
Order Sample
LG-PW2209
610*610*9.5
White
SQ
35
N/A
Order Sample
LG-SP662
600*600*12.5
White
SQ
40
N/A
Order Sample
LG-SP222
610*610*12.5
White
SQ
40
N/A
Order Sample
LG-PW662
600*600*12.5
White
SQ
40
N/A
Order Sample
LG-PW222
610*610*12.5
White
SQ
40
N/A
Order Sample
LG-SP622
600*1200*12.5
White
SQ
40
N/A
Order Sample
LG-SP242
610*1220*12.5
White
SQ
40
N/A
Order Sample
LG-PW622
600*1200*12.5
White
SQ
40
N/A
Order Sample
LG-PW242
610*1220*12.5
White
SQ
40
N/A
Order Sample
LG-SPR662
600*600*12.5
White
SL
40
N/A
Order Sample
LG-SPR222
610*610*12.5
White
SL
40
N/A
Order Sample
LG-PWR662
600*600*12.5
White
SL
40
N/A
Order Sample
LG-PWR222
610*610*12.5
White
SL
40
N/A
Order Sample
LG-SPRF662
600*600*12.5
White
FL
40
N/A
Order Sample
LG-SPRF222
610*610*12.5
White
FL
40
N/A
Order Sample
LG-PWRF662
600*600*12.5
White
FL
40
N/A
Order Sample
LG-PWRF222
610*610*12.5
White
FL
40
N/A
Order Sample
LG-SPR622
600*1200*12.5
White
FL
40
N/A
Order Sample
LG-SPR242
610*1220*12.5
White
FL
40
N/A
Order Sample
LG-PWR622
600*1200*12.5
White
FL
40
N/A
Order Sample
LG-PWR242
610*1220*12.5
White
FL
40
N/A
Order Sample
LG-SPRF622
600*1200*12.5
White
FL
40
N/A
Order Sample
LG-SPRF242
610*1220*12.5
White
FL
40
N/A
Order Sample
LG-PWRF622
600*1200*12.5
White
FL
40
N/A
Order Sample
LG-PWRF242
610*1220*12.5
White
FL
40
N/A
Order Sample
