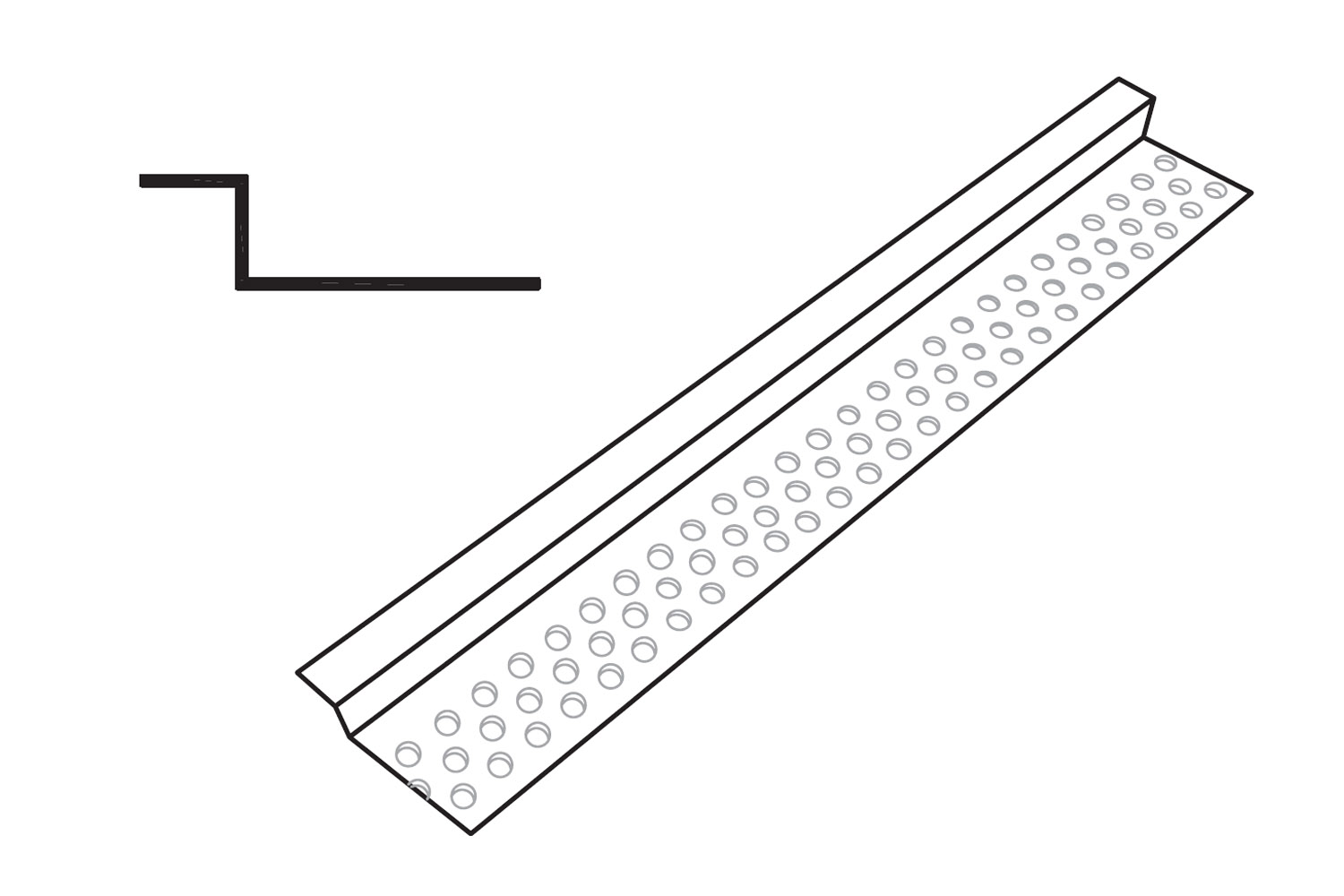

Shadowline Stoppage Angle - SA201215-045

USG Shadowline Stoppage Angles, create the impression of greater ceiling heights whilst helping to hide imperfections in the abutting walls, thickness range from 0.45 to 0.6 mm with Zinc coating 180-270 g/m².
Thickness
0.45 0.5 0.55 0.6
Zinc Coating
180


Add to Bucket
Performance & Specifications Product Items Documents & Files
Features
  • Meet or exceed all international code requirements
  • Fully compatible with all standard wall boards
  • Knurled flanges for easier attachment of exposed materials
  • Dimensionally stable with High load bearing capacity
  • Won’t warp, twist or bow
  • Length is optional and can be customized as per customer needs
  • Large range of size and thickness available
  • Available with High Recycled Content (HRC)
Specifications
Physical Properties
  • Galvanized steel G90
  • Surface: Zinc galvanized
  • Yield stress, Fy 33 ksi Ultimate
  • Z - Shape 20x12.5/15x15 mm Sizes: Length: Standard 3,000 mm, Thickness: from 0.45 to 0.90 mm
  • ASTM & Code Standards: USG Boral Stoppage Angle are produced to meet or exceed ASTM C645 and C955
  • Galvanized sheet steel meets or exceeds requirements of ASTM A-653
  • For installation & storage information refer to ASTM C1007 & C754
  • Green Benefits and Recycled Content: LEED Credit MR 2 – USG Boral products are manufactured from cold formed steel. - Steel is 100% recyclable, which helps divert debris from the waste stream
  • LEED Credit MR 4 – USG Boral steel products have a minimum of 25.5% postconsumer recycled content, and 6.8% pre-consumer.
Catalogue

Item

Thickness

Zinc Coating

SA201215-045
0.45
180
Order Sample
SA201215-050
0.5
180
Order Sample
SA201215-055
0.55
180
Order Sample
SA201215-060
0.6
180
Order Sample
SA201515-045
0.45
180
Order Sample
SA201515-050
0.5
180
Order Sample
SA201515-055
0.55
180
Order Sample
SA201515-060
0.6
180
Order Sample
