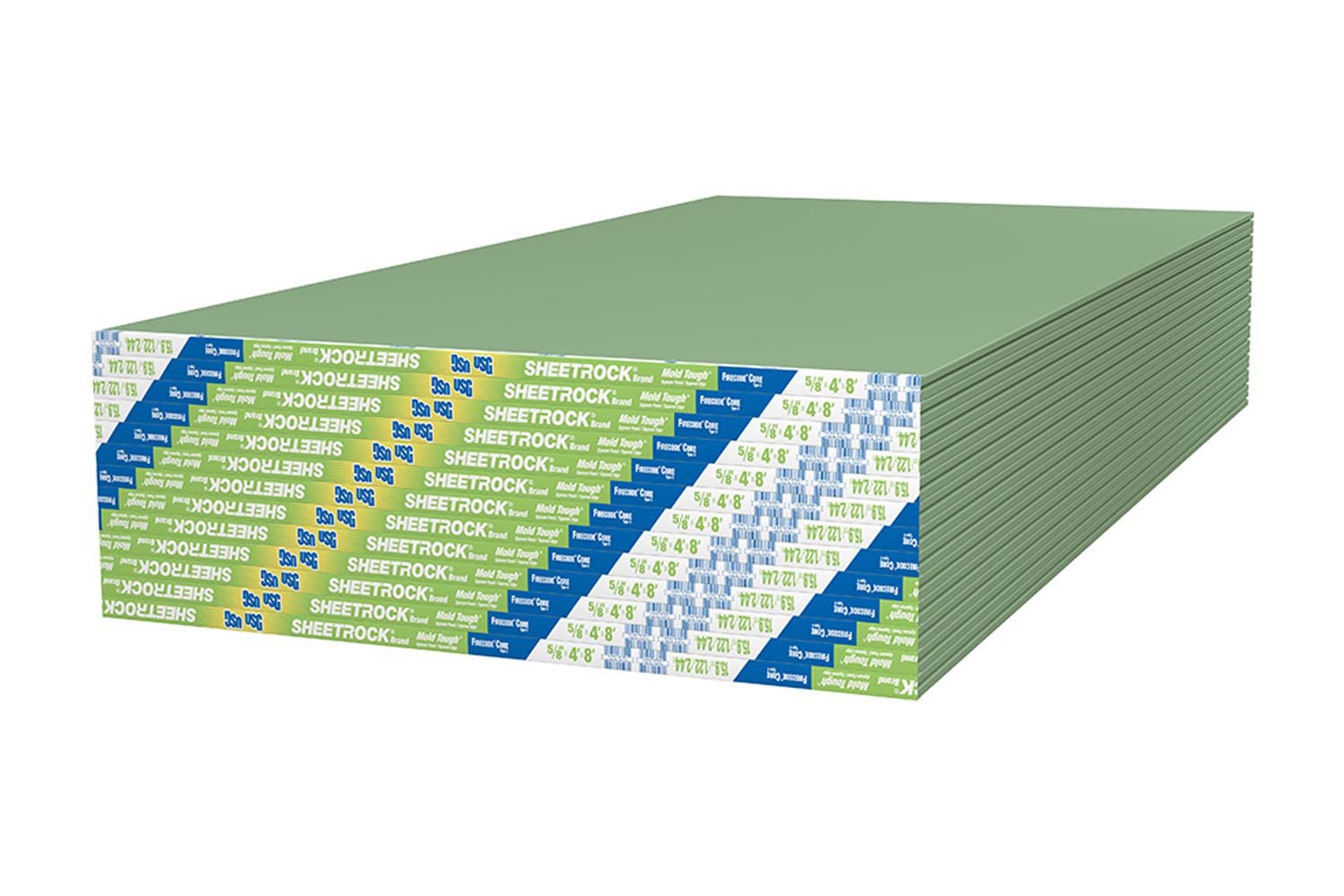

Sheetrock® Brand Gypsum Board Mold Tough™ Type C - SGBMT127C2440

USG Sheetrock® Brand Mold Tough® Panels Firecode® Type C are available in 12.7 mm and 15.9 mm thicknesses. These panels feature a noncombustible,moisture and mold-resistant gypsum core that is encased in moisture- and mold-resistant, 100% recycled green face and brown back papers. When tested in accordance with ASTM D3273, Standard Test Method for Resistance to Growth of Mold on the Surface of Interior Coatings in an Environmental Chamber, the panels meet or exceed ASTM C1396 specifications. The long edges of the panels are tapered, allowing joints to be reinforced and concealed with USG Sheetrock® Brand joint treatment systems. The panels are UL Classified for fire resistance and can be used in any UL Design in which Type C panels are listed. On the face along the long edge of each panel, the UL Type Designation is printed for easy identification by building inspector.
Features
  • 12.7 mm and 15.9 mm Type C wallboard with moisture and mold resistance
  • 12.7 mm and 15.9 mm Type C moisture- and mold-resistant panels for use on walls and ceilings
  • Specially formulated mineral core that provides superior fire resistance for ceiling applications
  • Feature a noncombustible, moisture- and mold-resistant gypsum core encased in moisture- and mold-resistant, 100% recycled green face and brown back papers
  • Underwriters Laboratories Inc. (UL) Classification as to fire resistance, surface-burning characteristics and non-combustibility
  • Comply with ASTM C1396, Standard Specification for Gypsum Board, for 12.7 mm and 15.9 mm Type X, water-resistant gypsum wallboard and exterior gypsum soffit board
  • Achieved GREENGUARD Gold Certification and qualifies as a low VOC emitting material (meets CA 01350)
Specifications
Physical Properties:
  • Physical Properties: Please refer to the product data in the Technical Data Sheet (TDS)
  • Moisture and mold resistance: Per ASTM C473, the average water absorption for is not greater than 5% by weight after two-hour immersion
  • In independent lab tests conducted on at the time of manufacture per ASTM D3273, Standard Test Method for Resistance to Growth of Mold on the Surface of Interior Coatings in an Environmental Chamber, the panels meet or exceed ASTM C1396 specifications
  • This ASTM lab test may not accurately represent the mold performance of building materials in actual use. Given unsuitable project conditions during storage, installation or after completion, any building material can be overwhelmed by mold. To manage the growth of mold, the best and most cost-effective strategy is to protect building products form water exposure during storage and installation, and after completion of the building. This can be accomplished by using good design and construction practices.
Sizes:
  • For Thickness 12.7 mm, Lengths: 2440-3660 mm, Width: 1220 mm, Weight: nominal 9.8 kg / m2, Edges: Tapered
  • For Thickness: 15.9 mm, Lengths: 2440-3660 mm, Width: 1220 mm, Weight: 12.2 kg / m2, Edges: Tapered
Applications:
  • Commercial or residential applications where Type C panels are required
  • New or repair and remodel construction
  • Fire-rated wall and ceiling assemblies
  • Single-layer, fire-rated ceiling assemblies with insulation in the plenum
  • Protected exterior soffit and ceiling applications
  • Protection of load-bearing and non-load-bearing wood- or steel-framed fire-rated walls

Item

Thickness

Size

SGBMT127C2440
12.7mm
1220mmx2440mm
SGBMT127R2440
12.7mm
1220mmx2440mm
SGBMT159C2440
15.9mm
1220mmx2440mm
