Athena Acoustical Ceiling - ATX666

Offered in Multiple Pin Perforation Acoustic false ceiling tiles for Ideal Mid-range sound absorption & sound Attenuation which provides balance to room acoustics


Add to Bucket
Performance & Specifications Product Items Documents & Files Cad & Revit Installation
Features

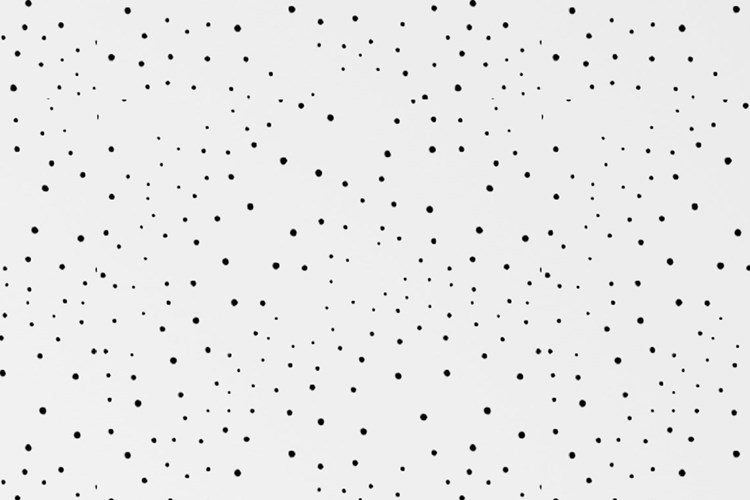

  • Accessible acoustical ceiling system with multiple random pin perforation panels
  • Available in semi-concealed and fully concealed tiles
  • Ideal for mid to high sound absorption & sound attenuation which provides balance to room acoustics
  • Excellent for general commercial construction projects
  • Maximum economy and design simplicity
  • Could be available in washable & hygienic paint upon request
  • Specially formulated in 16mm for high Acoustic sound absorption requirement with NRC 0.7
Specifications
Physical Properties
  • Materials Classification: Type: III, Form: 2, Pattern: C, E
  • Substrate and Surface Finish: Mineral Fiber substrate with factory-applied water-based paint
  • Thickness: 16mm, 19mm, 25mm
  • Size: 600 x 600mm, 610 x 610mm, 600 x 1200mm, 610 x 1220mm
  • Edge Detail Trim: Square, Reveal [SLT, FLB], Concealed [BESK, D-BESK, S-BESK]
  • Weight: 16mm [5.45 kg/m², Fire Code], 19mm [6.45 kg/m², Fire Code], 25mm [8.5 kg/m², Fire Code]
  • Noise Reduction Coefficient [NRC]: [0.65] [0.7]
  • Ceiling Attenuation Class [CAC]: [35 dB] [37 dB] [40 dB]
  • Humidity Resistance: Maximum 99% RH / 40°C for ClimaPlus
  • Light Reflectance Coefficient [LR]: 0.86
  • Color: White similar to RAL 9016
  • Surface Burning Characteristics as per ASTM E84: Class A, Flame Spread: 10, Smoke development 20
  • Reaction to Fire as per EN 13501-1: Euroclass A2-S1,D0
  • Fire Rating as per ASTM E119: 2hrs Time-Rated Assembly [J201]
  • Thermal Resistance: 16mm [0.25 m² °K/W-R 1.4], 19mm [0.31 m² °K/W-R 1.8], 25mm [MISSING]
  • Washability / Scrubbability as per ASTM D4828 & D2486: Exceeds 1000 Wash/Scrub cycles without surface break or the extent of abrasion upon request
  • Relevant LEED Credit: EA Credit 1 | MR Credit 4| MR Credit 5 | MR Credit 6 | IEQ Credit 3 | IEQ Credit 3.2 | IEQ Credit 4.6 | IEQ Credit 8.1 | IEQ Credit 9

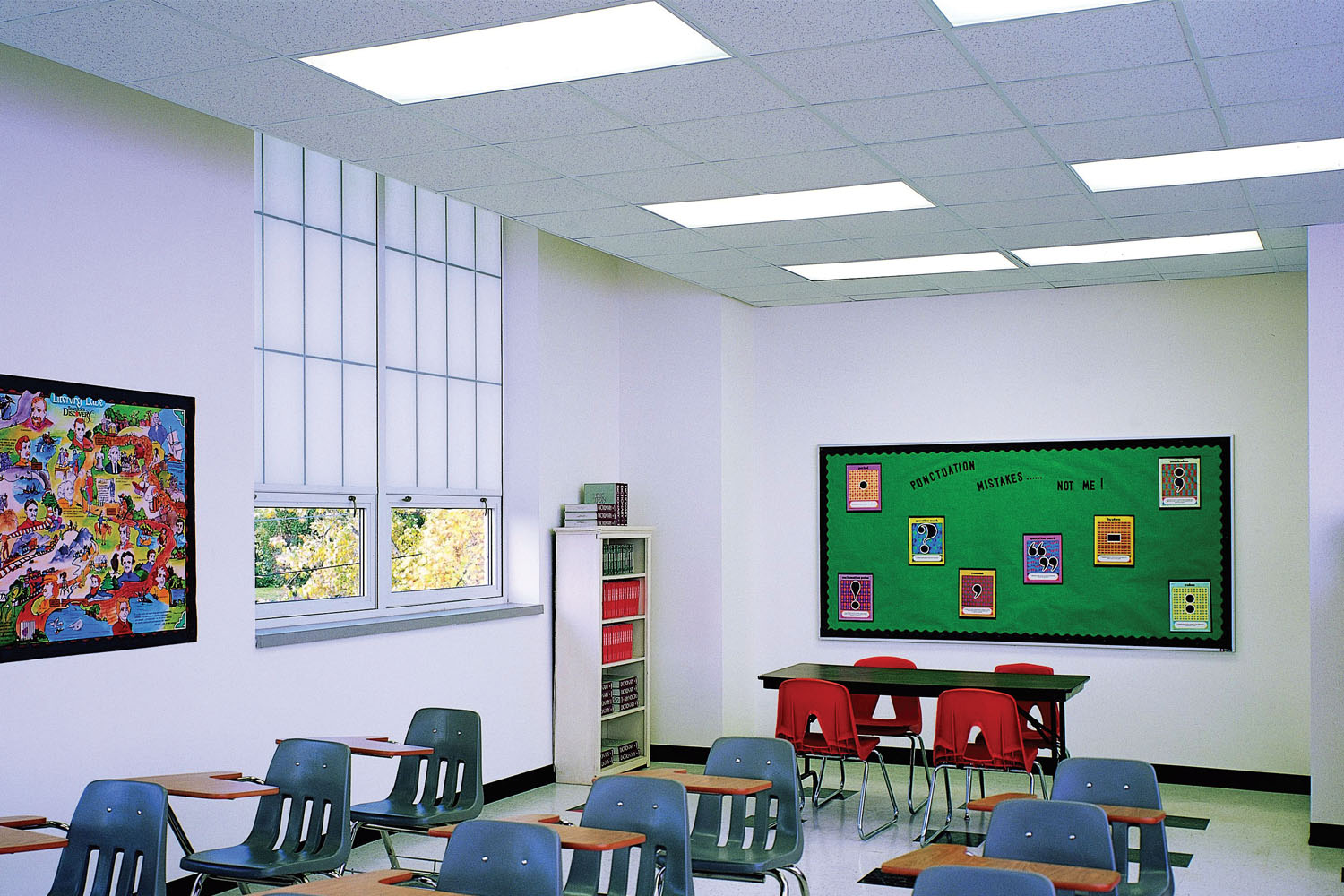

Applications
  • Schools
  • Corridors
  • Lobby areas
  • Offices
  • Retail Stores
Catalogue

Item

Size

Color

Edges

CAC

NRC

ATX666
600*600*16
White
SQ
35
0.7
Order Sample
ATX226
610*610*16
White
SQ
35
0.7
Order Sample
ATX626
600*1200*16
White
SQ
35
0.7
Order Sample
ATX246
610*1220*16
White
SQ
35
0.7
Order Sample
ATXR666
600*600*16
White
SLT
35
0.7
Order Sample
ATXR226
610*610*16
White
SLT
35
0.7
Order Sample
ATXRF666
600*600*16
White
FLB
35
0.7
Order Sample
ATXRF226
610*610*16
White
FLB
35
0.7
Order Sample
ATXRFDC669
600*600*19
White
D-Besk
37
0.65
Order Sample
ATXRFDC229
610*610*19
White
D-Besk
37
0.65
Order Sample
ATXDSC6625
600*600*25
White
S-Besk
40
0.7
Order Sample
ATXDSC2225
610*610*25
White
S-Besk
40
0.7
Order Sample
ATXFC669
600*600*19
White
Besk
37
0.65
Order Sample
ATXFC229
610*610*19
White
Besk
37
0.65
Order Sample
