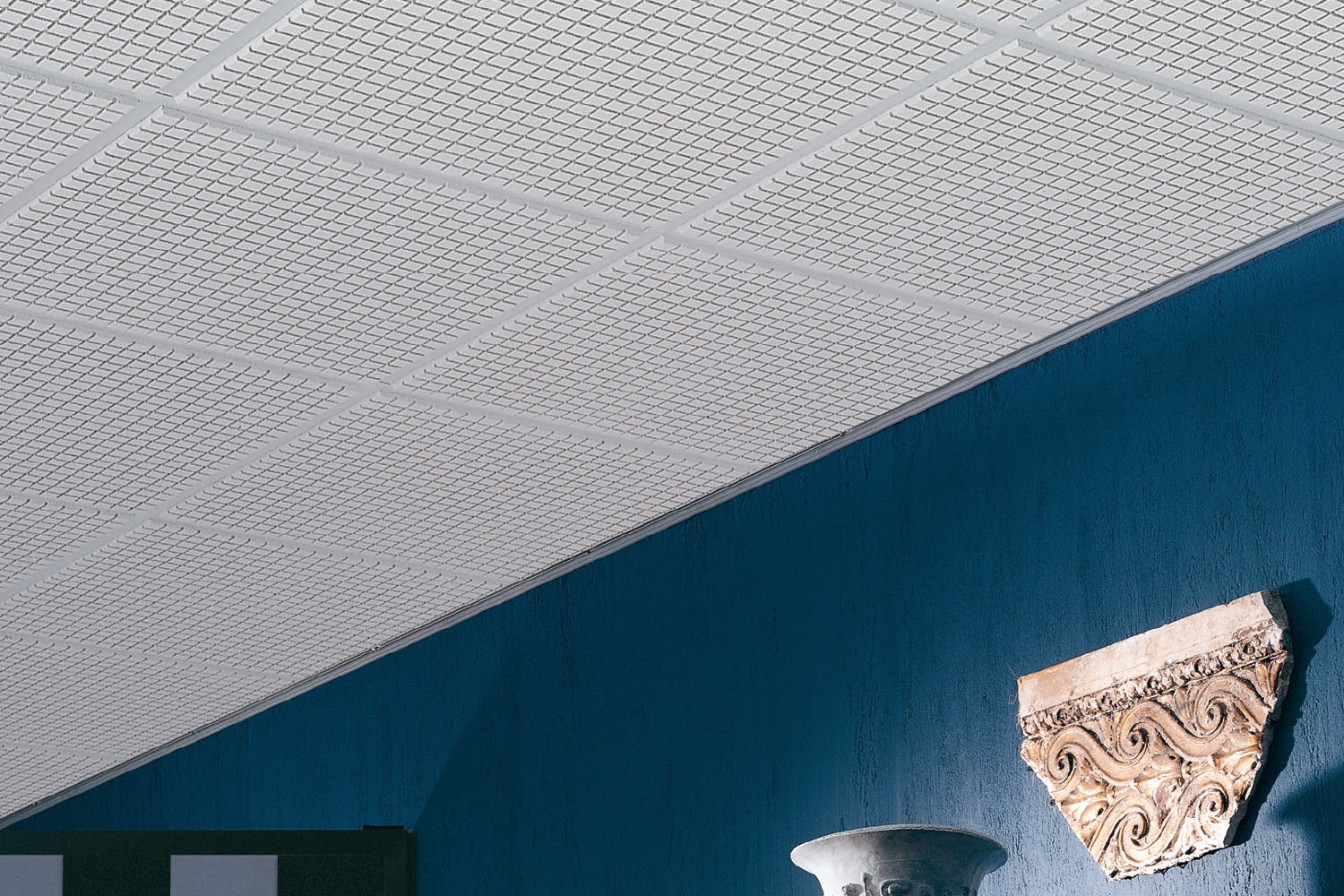

Chessboard Acoustical Ceiling - CHSR669

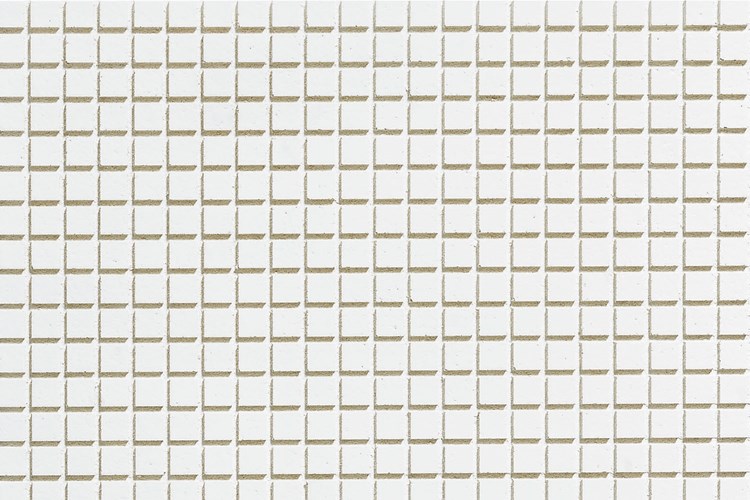

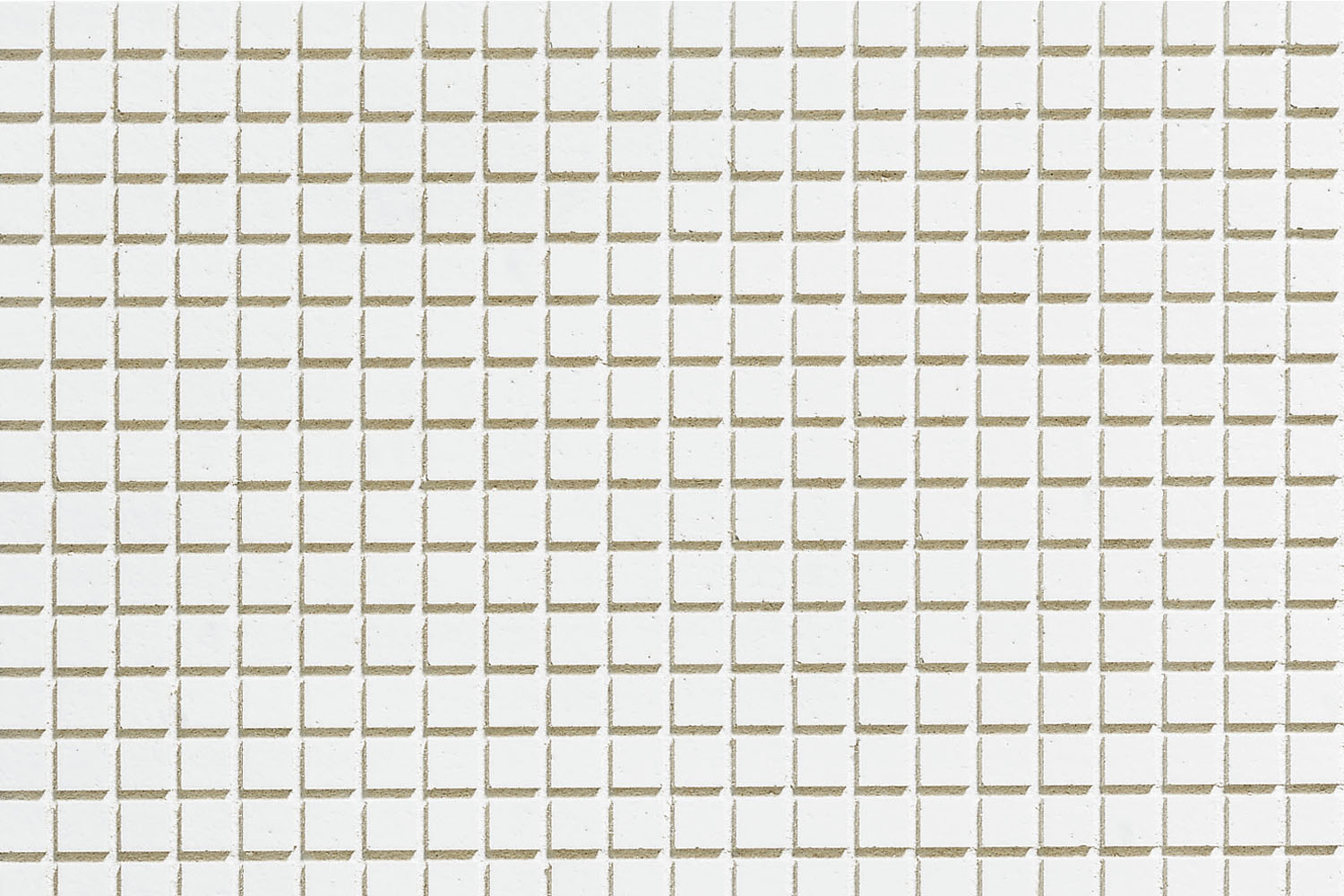

Chessboard is a fine non directional Face Cut acoustic false ceiling panels with 529 squares and shallow geometric square or linear face cuts disguise the grid for a monolithic appearance.
Size
600*600*19 610*610*19
Color
White
Edges
SLT
NRC
0.3
CAC
35


Add to Bucket
Performance & Specifications Product Items Documents & Files Cad & Revit Installation
Features
  • Fine non directional Face Cut panels with 529 squares
  • Shallow geometric square or linear face cuts disguise the grid for a monolithic appearance
  • Scored with one face style and smooth surface without any perforation
  • Low sound absorption, ideal where increase room reverberation is desired
  • Mid-range sound attenuation, ideal for general commercial construction
  • Easy to trim and install
Specifications
Physical Properties
  • Materials Classification: Type: III, Form: 2, Pattern: E, K
  • Substrate and Surface Finish: Mineral Fiber substrate with factory-applied water-based paint
  • Thickness: 19mm
  • Size: 600 x 600mm, 610 x 610mm
  • Edge Detail Trim: Reveal [SLT]
  • Weight: 4.5 kg/m², Regular/ ClimaPlus
  • Noise Reduction Coefficient [NRC]: [0.30]
  • Ceiling Attenuation Class [CAC]: [35 dB]
  • Humidity Resistance: Maximum 90% RH / 30°C for ClimaPlus
  • Light Reflectance Coefficient [LR]: 0.83
  • Color: White similar to RAL 9016
  • Surface Burning Characteristics as per ASTM E84: Class A, Flame Spread: 10, Smoke development 20
  • Reaction to Fire as per EN 13501-1: Euroclass A2-S1,D0
  • Thermal Resistance: 0.31 m² °K/W - R 1.8
  • Washability / Scrubbability as per ASTM D4828 & D2486: Exceeds 1000 Wash/Scrub cycles without surface break or the extent of abrasion upon request
  • Relevant LEED Credit: EA Credit 1 | MR Credit 4| MR Credit 5 | MR Credit 6 | IEQ Credit 3 | IEQ Credit 3.2 | IEQ Credit 4.6 | IEQ Credit 8.1 | IEQ Credit 9
Applications
  • Schools
  • Corridors
  • Waiting Rooms
  • Leisure
  • General Offices
  • Retail Stores
Catalogue

Item

Size

Color

Edges

CAC

NRC

CHSR669
600*600*19
White
SLT
35
0.3
Order Sample
CHSR229
610*610*19
White
SLT
35
0.3
Order Sample
