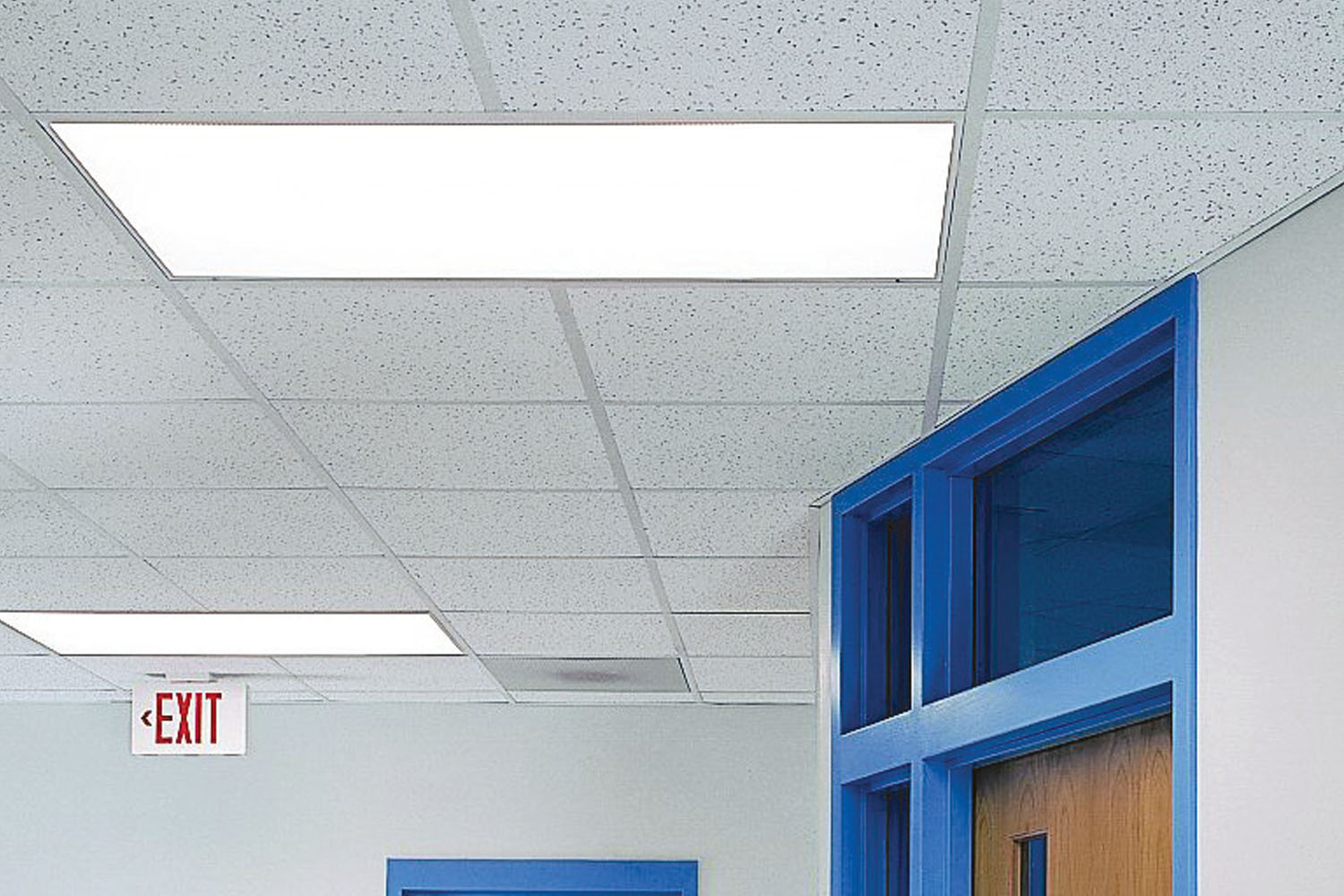

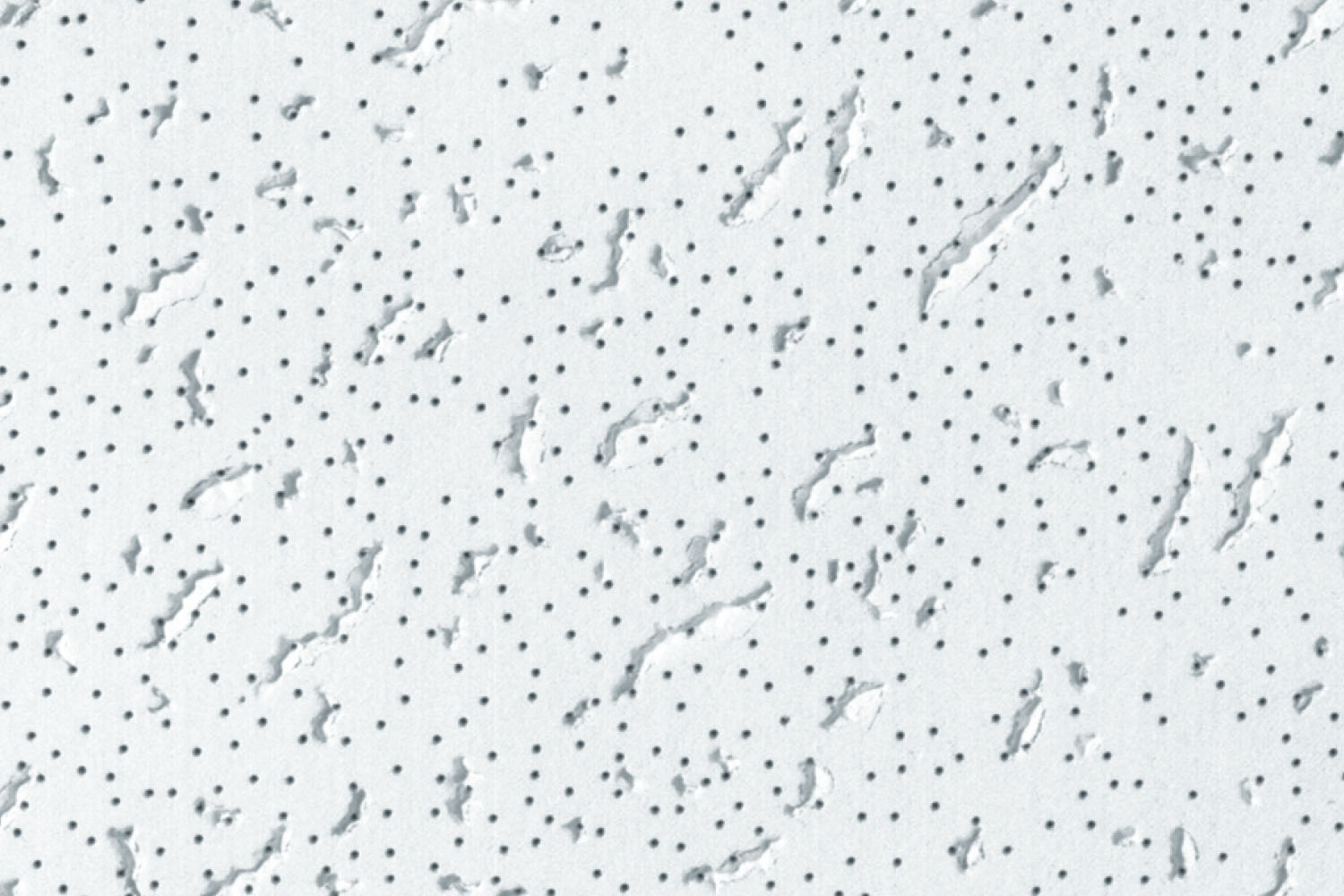

Cross Fissured Acoustical Ceiling - CFS665

Designed for economical all-purpose acoustic false ceiling pattern available in various panel sizes.


Add to Bucket
Performance & Specifications Product Items Documents & Files Cad & Revit Installation
Features
  • Economical, all-purpose ceiling pattern available in various panel sizes
  • Directionally fissured panels excellent choice for large ceiling areas
  • Mid-range sound absorption and sound attenuation which make it ideal for Schools, Corridors and general commercial stores
  • Optional FIRECODE™ formulation designed to meet life safety codes
  • Meets the emission test criteria as low emitting per standards established by the Collaborative for High- Performance Schools (CHPS) and following ASTM D5116 testing method
Specifications
Physical Properties
  • Materials Classification: Type: III, Form: 2, Pattern: C, D
  • Substrate and Surface Finish: Mineral Fiber substrate with factory-applied water-based paint
  • Thickness: 15mm, 19mm
  • Size: 600 x 600mm, 610 x 610mm, 600 x 1200mm, 610 x 1220mm
  • Edge Detail Trim: Square, Reveal [SLT]
  • Weight: 15mm [3.6 kg/m², Regular/ ClimaPlus], 15mm [5.1 kg/m², Fire Code], 19mm [4.5 kg/m², Regular/ ClimaPlus], 19mm [6.45 kg/m², Fire Code]
  • Noise Reduction Coefficient [NRC]: [0.50] [0.60]
  • Ceiling Attenuation Class [CAC]: [35 dB] [37 dB]
  • Humidity Resistance: Maximum 90% RH / 30°C for ClimaPlus
  • Light Reflectance Coefficient [LR]: 0.82
  • Color: White similar to RAL 9016
  • Surface Burning Characteristics as per ASTM E84: Class A, Flame Spread: 10, Smoke development 20
  • Reaction to Fire as per EN 13501-1: Euroclass A2-S1,D0
  • Fire Rating as per ASTM E119: 2hrs Time-Rated Assembly [J201]
  • Thermal Resistance: 15mm [0.23 m² °K/W - R 1.3], 19mm [0.31 m² °K/W - R 1.8]
  • Washability / Scrubbability as per ASTM D4828 & D2486: Exceeds 1000 Wash/Scrub cycles without surface break or the extent of abrasion upon request
  • VOC Class: Green Guard Gold
  • Relevant LEED Credit: EA Credit 1 | MR Credit 4| MR Credit 5 | MR Credit 6 | IEQ Credit 3 | IEQ Credit 3.2 | IEQ Credit 4.6 | IEQ Credit 8.1 | IEQ Credit 9
Applications
  • Education
  • Corridors/Hallways
  • Mass Merchandisers
  • Convenience Stores
  • Mezzanine / Basement
  • Warehouse
Catalogue

Item

Size

Color

Edges

CAC

NRC

CFS665
600*600*15
White
SQ
35
0.5
Order Sample
CFS225
610*610*15
White
SQ
35
0.5
Order Sample
CFC665
600*600*15
White
SQ
35
0.5
Order Sample
CFC225
610*610*15
White
SQ
35
0.5
Order Sample
CFC625
600*1200*15
White
SQ
35
0.5
Order Sample
CFC245
610*1220*15
White
SQ
35
0.5
Order Sample
CFX665
600*600*15
White
SQ
35
0.5
Order Sample
CFX225
610*610*15
White
SQ
35
0.5
Order Sample
CFS669
600*600*19
White
SQ
37
0.6
Order Sample
CFS229
610*610*19
White
SQ
37
0.6
Order Sample
CFX669
600*600*19
White
SQ
37
0.6
Order Sample
CFX229
610*610*19
White
SQ
37
0.6
Order Sample
CFSR665
600*600*15
White
SLT
35
0.5
Order Sample
CFSR225
610*610*15
White
SLT
35
0.5
Order Sample
CFCR665
600*600*15
White
SLT
35
0.5
Order Sample
CFCR225
610*610*15
White
SLT
35
0.5
Order Sample
CFXR665
600*600*15
White
SLT
35
0.5
Order Sample
CFXR225
610*610*15
White
SLT
35
0.5
Order Sample
Technical Datasheet (TDS)
Cross-Fissured-Technical-Submittal-Sheet-TDS
Add to my submittals
Safety Datasheet (SDS)
Ceiling-Acoustic-Panels-Firecode-Safety-Data-Sheet(SDS)
Add to my submittals
Ceiling-Acoustic-Panels-Std-CP-Safety-Data-Sheet(SDS)
Add to my submittals
Ceiling Specification Format (CSI)
Acoustical-Ceilings-Cross-Fissured-Fire-Chief-Narrow-Specs-CSI-Format
Add to my submittals
Acoustical-Ceilings-Cross-Fissured-Fire-Chief-Wide-Specs-CSI-Format
Add to my submittals
Test Certificates
Ceiling-Cross-Fissured-GreenGuard-Gold-(Certificate)
Add to my submittals
Systems Catalogue
USG-Grids-and-Suspensions-Catalogue
Add to my submittals
Installation Guide
Grids-and-Suspensions-Installation-(LAY-IN)
Add to my submittals
Products Portfolio
Ceiling-2018-2019-USG-Boral-ME-Ceiling-(Products-Portfolio)
Add to my submittals
Warranty
Ceilings-Warranty
Add to my submittals
Anti Mould - Technical Datasheet (TDS)
Anti Mould - Technical Datasheet (TDS)
Add to my submittals
Company Profile
USG ME Profile
Add to my submittals

Acoustical Ceiling-T15 Lay In System

Add to my submittals

Acoustical Ceiling-T24 Lay In System

Add to my submittals

Acoustical Ceiling-T15 Lay In System

Add to my submittals

Acoustical Ceiling-T15 Lay In System-Floor Plan

Add to my submittals

Acoustical Ceiling-T15 Lay In System-Isometric View

Add to my submittals

Acoustical Ceiling-T15 Lay In System-Reflected Ceiling Plan

Add to my submittals

Acoustical Ceiling-T24 Lay In System

Add to my submittals

Acoustical Ceiling-T24 Lay In System-Floor Plan

Add to my submittals

Acoustical Ceiling-T24 Lay In System-Isometric View

Add to my submittals

Acoustical Ceiling-T24 Lay In System-Reflected Ceiling Plan

Add to my submittals

Acoustical Ceiling-T15 Lay In System

Add to my submittals

Acoustical Ceiling-T24 Lay In System

Add to my submittals
