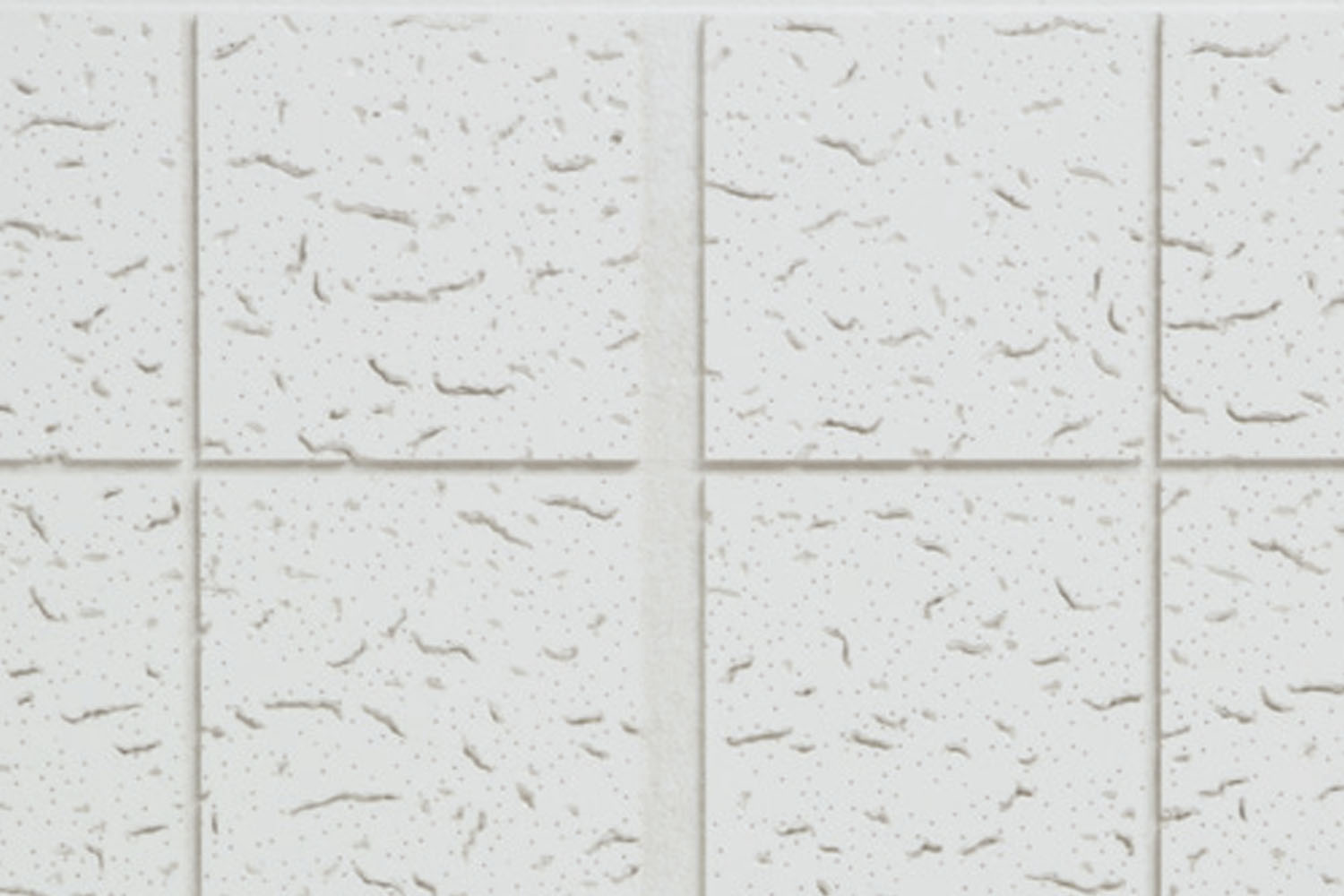

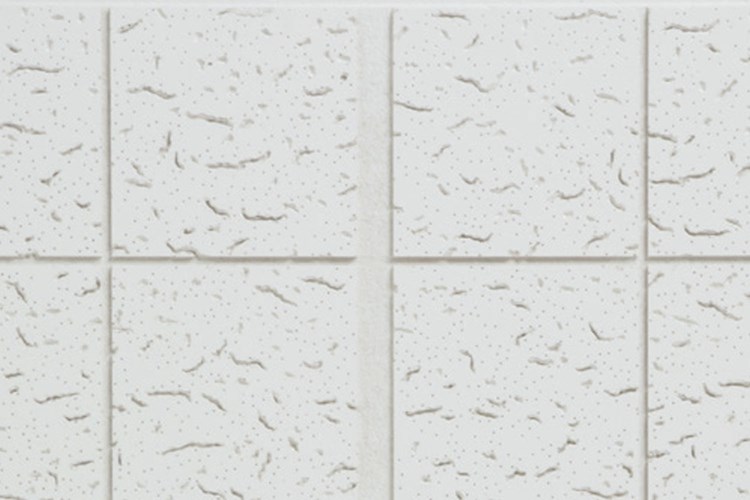

Designer Series Acoustical Ceiling - QCFSR669

Designed for 360 ° non directional pattern with a fresh, clean appearance offers fast and economical acoustical false ceiling installation.
Size
600*600*19 610*610*19
Color
White
Edges
SLT
NRC
0.15 0.4 0.6 0.65
CAC
35 37


Add to Bucket
Performance & Specifications Product Items Documents & Files Cad & Revit Installation
Features
  • 360 ° non directional pattern with a fresh, clean appearance offers fast, economical installation
  • Shallow geometric square face cuts disguise the grid for a monolithic appearance, thus making it appear part of the overall ceiling design
  • Face Scores create illusion of a smaller-scaled ceiling system
  • Available into 4 different face style ranging from smooth to textured surfaces
  • Low to Mid-range sound attenuation, ideal for general commercial construction
  • Fire resistant system options, for life safety & protection of property
  • Easy to trim and install
Specifications
Physical Properties
  • Materials Classification: Type: III, Form: 2, Pattern: C, D, E, G, K
  • Substrate and Surface Finish: Mineral Fiber substrate with factory-applied water-based paint
  • Thickness: 19mm
  • Size: 600 x 600mm, 610 x 610mm
  • Edge Detail Trim: Reveal [SLT]
  • Weight: 4.5 kg/m, Regular/ ClimaPlus
  • Noise Reduction Coefficient [NRC]: [0.15] [0.40] [0.60] [0.65]
  • Ceiling Attenuation Class [CAC]: [35 dB] [37 dB]
  • Humidity Resistance: Maximum 90% RH / 30°C for ClimaPlus
  • Light Reflectance Coefficient [LR]: [0.83 – 0.88]
  • Color: White similar to RAL 9016
  • Surface Burning Characteristics as per ASTM E84: Class A, Flame Spread: 10, Smoke development 20
  • Reaction to Fire as per EN 13501-1: Euroclass A2-S1,D0
  • Thermal Resistance: 0.31 m² °K/W - R 1.8
  • Washability / Scrubbability as per ASTM D4828 & D2486: Exceeds 1000 Wash/Scrub cycles without surface break or the extent of abrasion upon request
  • VOC Class: Green Guard Gold
  • Relevant LEED Credit: EA Credit 1 | MR Credit 4| MR Credit 5 | MR Credit 6 | IEQ Credit 3 | IEQ Credit 3.2 | IEQ Credit 4.6 | IEQ Credit 8.1 | IEQ Credit 9
Applications

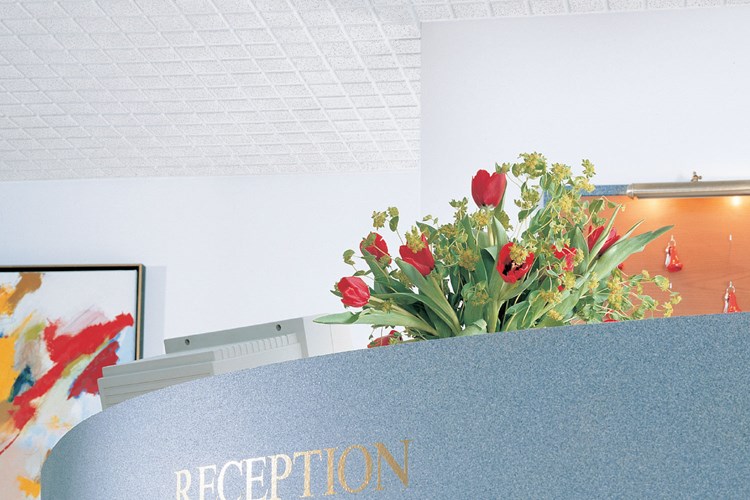

  • Reception
  • Shopping Centers
  • Waiting Rooms
  • Café/Restaurants
  • General Offices
  • Luxury Retail stores
Catalogue

Item

Size

Color

Edges

CAC

NRC

QCFSR669
600*600*19
White
SLT
35
0.15
Order Sample
QCFSR229
610*610*19
White
SLT
35
0.15
Order Sample
QTPSR669
600*600*19
White
SLT
35
0.4
Order Sample
QTPSR229
610*610*19
White
SLT
35
0.4
Order Sample
QTCR669
600*600*19
White
SLT
35
0.15
Order Sample
QTCR229
610*610*19
White
SLT
35
0.15
Order Sample
QTCR669(36/15)
600*600*19
White
SLT
37
0.15
Order Sample
QOLPCR669
600*600*19
White
SLT
37
0.65
Order Sample
QOLPCR229
610*610*19
White
SLT
37
0.65
Order Sample
QRDCR669
600*600*19
White
SLT
35
0.6
Order Sample
QRDCR229
610*610*19
White
SLT
35
0.6
Order Sample
QRDCR669
600*600*19
White
SLT
35
-
Order Sample
QRDCR229
610*610*19
White
SLT
35
-
Order Sample
