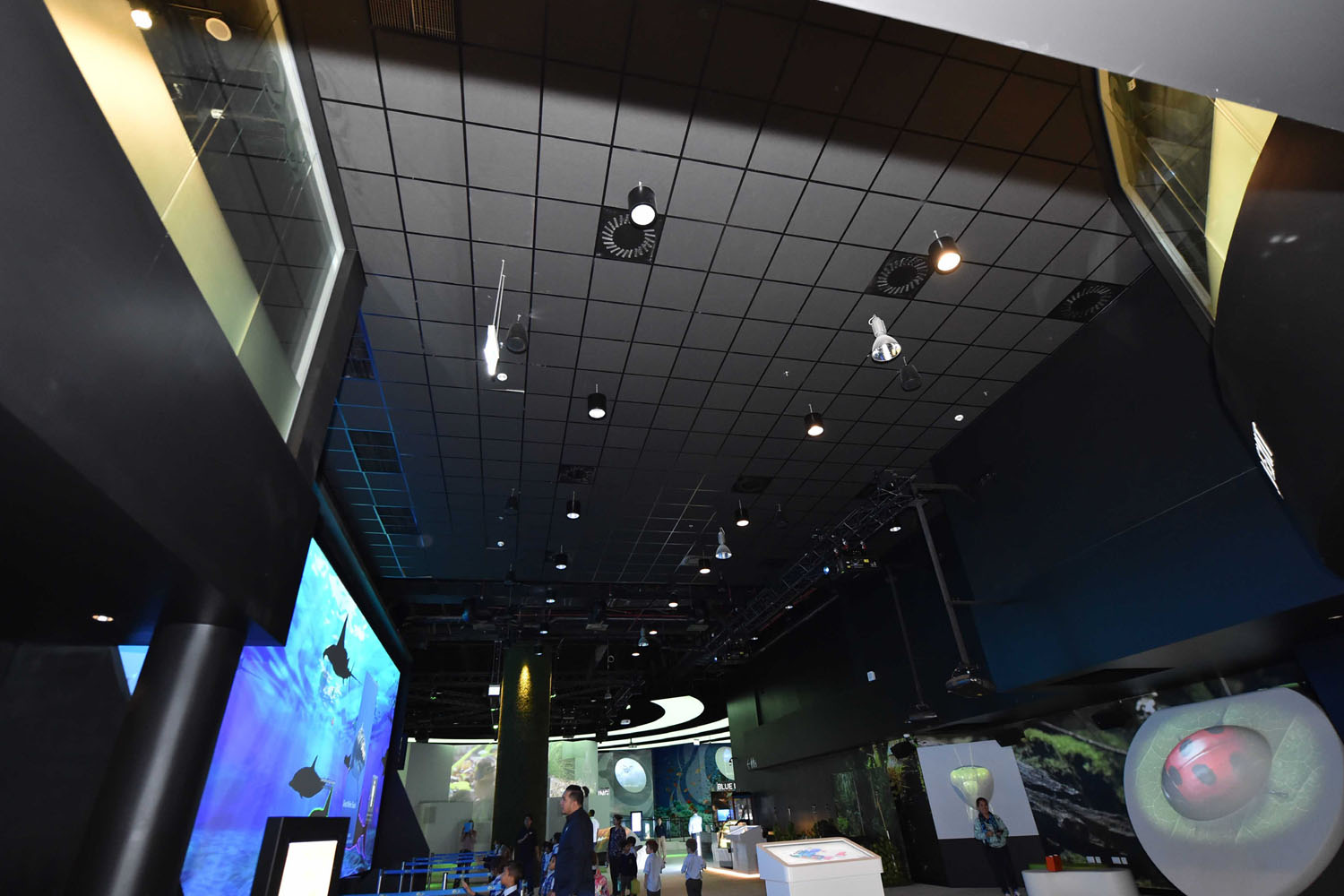

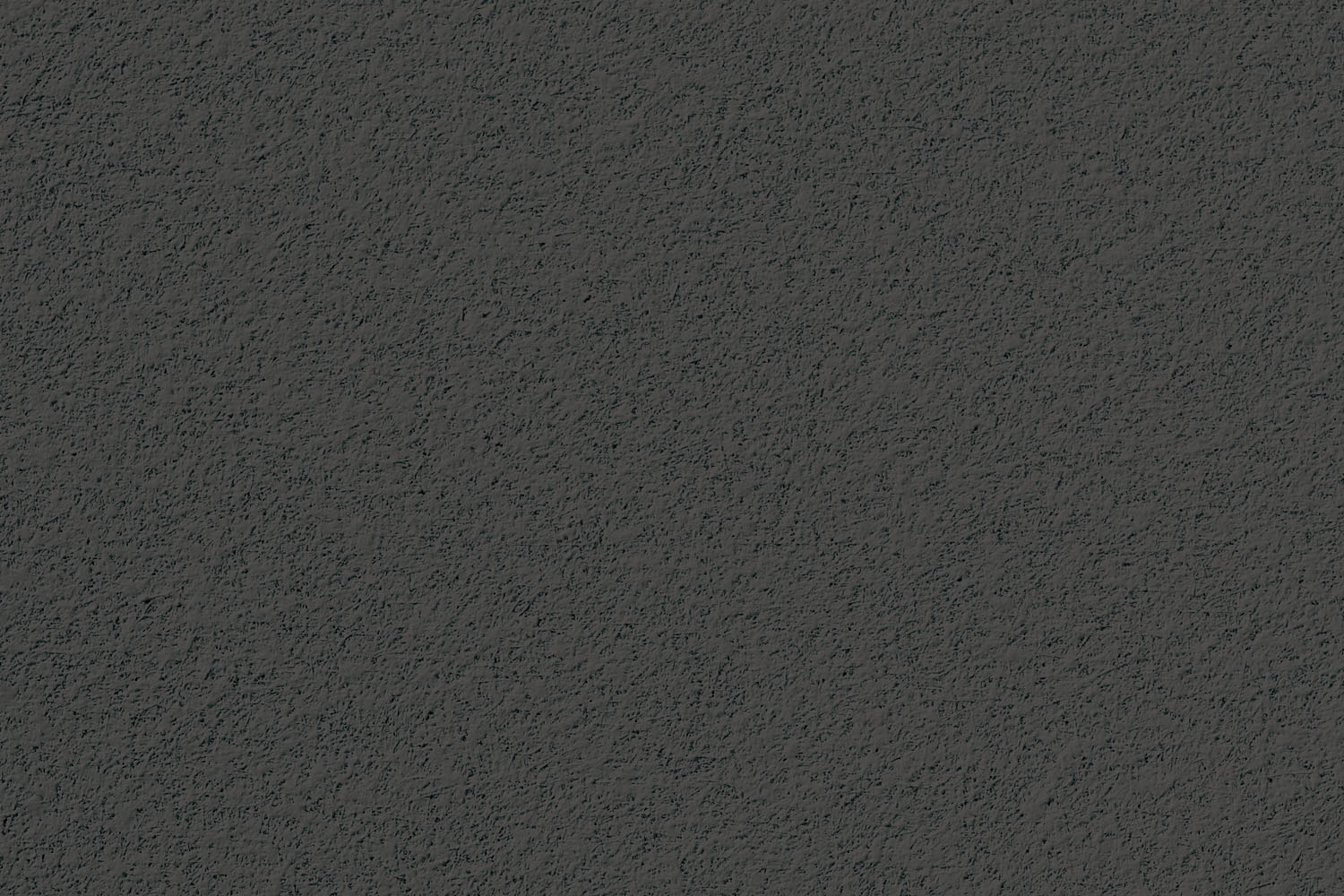

Halcyon™ Black Acoustical Ceiling - HC6238B-AF

Fiber Glass light weight acoustic false ceiling panels with monolithic visual offer exceptional noise reduction.


Add to Bucket
Performance & Specifications Product Items Documents & Files Cad & Revit Installation
Features
  • Fiber Glass substrate fully demountable reducing installation time
  • Exceptional Sound Absorption with NRC values up to 1 & high acoustic sound absorption performance at low frequencies satisfying high performance for cinema construction.
  • Impact & Scratch Resistant
  • Available in encapsulated sealed edges with aluminum foil back to increase sound attenuation
  • Light black tile for ideal application in cinemas and operating theaters
Specifications
Physical Properties
  • Materials Classification: Type: XII, Form: 2, Pattern: E, G
  • Substrate and Surface Finish: Fiberglass substrate finished with painted fiberglass scrim & backside thin aluminum foil layer
  • Thickness: 38mm, 50mm
  • Size: 600 x 600mm, 610 x 610mm, 600 x 1200mm, 610 x 1220mm
  • Edge Detail Trim: Square, Square Encapsulated
  • Weight: 38mm [3.6 kg/m²], 50mm [4.5 kg/m²]
  • Noise Reduction Coefficient [NRC]: [0.95]
  • Ceiling Attenuation Class [CAC]: [33vdB] [34 dB]
  • Mold Prevention Application as per ASTM D3273: Fiberglass substrate is inherently resistant to the growth of mold and mildew
  • Humidity Resistance: Maximum 99% RH / 40°C for ClimaPlus
  • Color: Black Color similar to RAL 7021
  • Surface Burning Characteristics as per ASTM E84: Class A, Flame Spread: 25, Smoke development: 50
  • Thermal Resistance: 38mm [1.12 m² °K/W- R 6.6] 50mm [1.47m² °K/W - R 8]
  • Washability / Scrubbability as per ASTM D4828 & D2486: Exceeds 1000 Wash/Scrub cycles without surface break or the extent of abrasion upon request
  • Relevant LEED Credit: EA Credit 1 | MR Credit 4| MR Credit 5 | MR Credit 6 IEQ Credit 3 | IEQ Credit 3.2 | IEQ Credit 4.6 | IEQ Credit 8.1 | IEQ Credit 9
Applications
  • Cinemas and operating theatres
  • Restaurants
  • Convention halls and concourses
  • Bowling Alleys
Catalogue

Item

Size

Color

Edges

CAC

NRC

HC6238B-AF
600*1200*38
Black
SQ
33
0.95
Order Sample
HC2438B-AF
610*1220*38
Black
SQ
33
0.95
Order Sample
HC6638B-AF
600*600*38
Black
SQ
33
0.95
Order Sample
HC2238B-AF
610*610*38
Black
SQ
33
0.95
Order Sample
HC6650B-AF
600*600*50
Black
SQE
34
0.95
Order Sample
HC2250B-AF
610*610*50
Black
SQE
34
0.95
Order Sample
HC6250B-AF
600*1200*50
Black
SQE
34
0.95
Order Sample
HC2450B-AF
610*1220*50
Black
SQE
34
0.95
Order Sample
