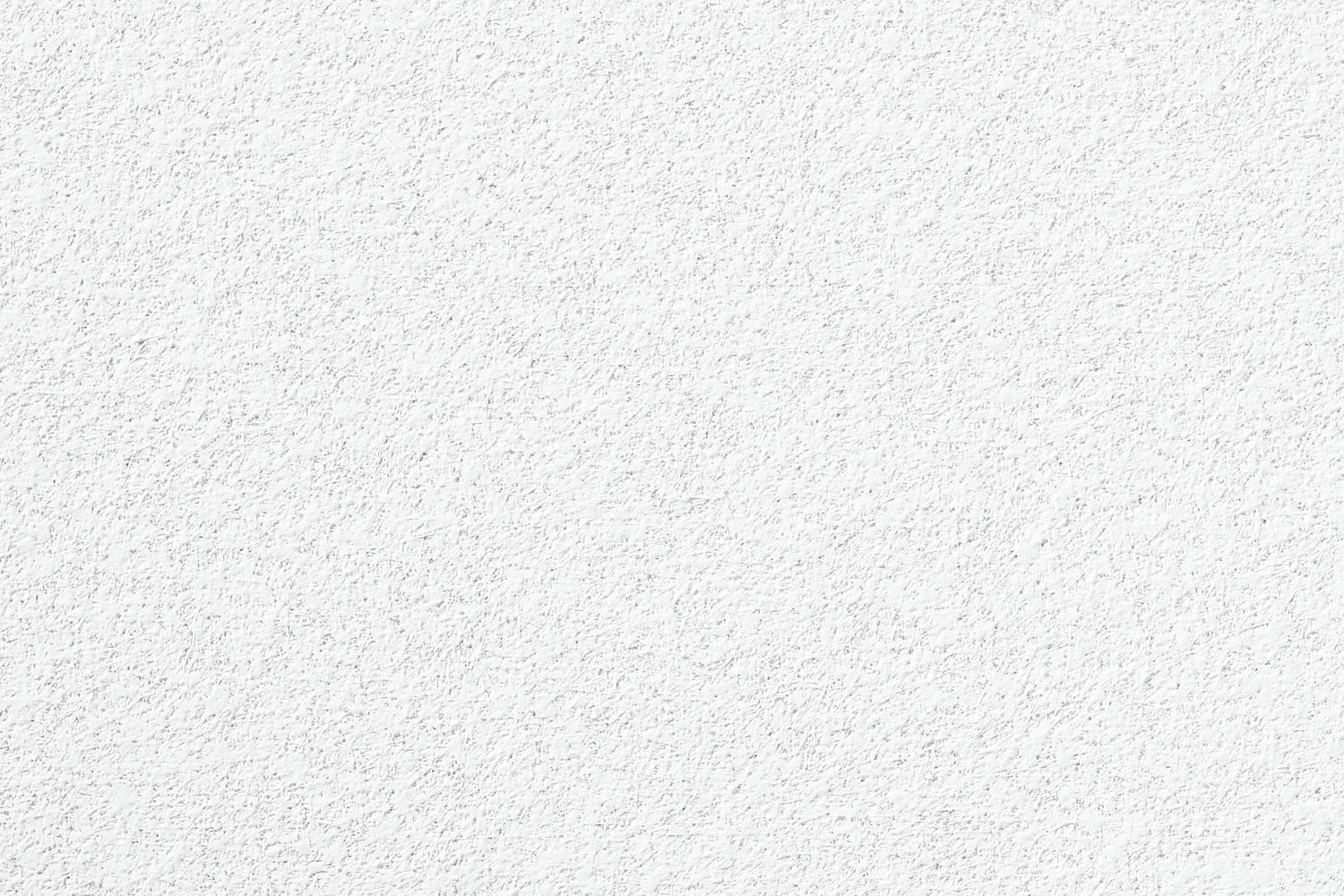

Louna™ Hi CAC Acoustical Ceiling - LC6640-MF

Louna Hi CAC Acoustic False Ceiling Tiles are designed to be durable and safe with common disinfectants. Made of Mineral Wool, finished with Painted Fiber Glass scrim


Add to Bucket
Performance & Specifications Product Items Documents & Files Cad & Revit Installation
Features
  • Specifically engineered when high acoustic performance is required and satisfying high frequency performance criteria.
  • Soft Fiber substrate and Wet Felted Mineral Fiber Substrate finished with Painted Fiber Glass scrim and sealed edge
  • Exceptional Sound Absorption with NRC values up to 0.9 and cup to 42dB
  • Impact & Scratch Resistant finish scrim
  • Available in Plank Sizes compatible with Logix Integrated Ceiling System
Specifications
Physical Properties
  • Materials Classification: Type: XII, Form: 2, Pattern: G
  • Substrate and Surface Finish: Mineral Wool substrate and Mineral Fiber substrate finished with painted fiberglass scrim
  • Thickness: 40mm, 43mm, 53mm
  • Size: 600 x 600mm, 610 x 610mm, 600 x 1200mm, 610 x 1220mm
  • Edge Detail Trim: Square Encapsulated, Reveal (FLE) Encapsulated
  • Weight: 40mm [5.65 kg/m²], 43mm [8.85 kg/m²], 53mm [12 kg/m²]
  • Noise Reduction Coefficient [NRC]: [0.85] [0.90]
  • Ceiling Attenuation Class [CAC]: [40 dB] [41 dB] [42 dB]
  • Mold Prevention Application as per ASTM D3273: Soft Fiber substrate is inherently resistant to the growth of mold and mildew
  • Humidity Resistance: Maximum 99% RH / 40°C for ClimaPlus
  • Light Reflectance Coefficient [LR]: 0.88
  • Color: Standard White similar to RAL 9016. Other colors are available upon request
  • Surface Burning Characteristics as per ASTM E84: Class A, Flame Spread: 25, Smoke development: 50
  • Thermal Resistance: 40mm [MISSING], 43mm [0.977m² °K/W - R 5.5], 50mm [1.176m² °K/W - R 6.6]
  • Washability / Scrubbability as per ASTM D4828 & D2486: Exceeds 1000 Wash/Scrub cycles without surface break or the extent of abrasion upon request
  • Relevant LEED Credit: EA Credit 1 | MR Credit 4| MR Credit 5 | MR Credit 6 IEQ Credit 3 | IEQ Credit 3.2 | IEQ Credit 4.6 | IEQ Credit 8.1 | IEQ Credit 9
Applications
  • Open-plan Areas
  • Offices with indirect lighting
  • Media Rooms
  • Receptions & Lobby Areas & corridors
  • Convention halls and concourses
  • Restaurants
  • Bowling Alleys
Catalogue

Item

Size

Color

Edges

CAC

NRC

LC6640-MF
600*600*40
White
SQ
40
0.85
Order Sample
LC6640-MF
600*600*40
Grey
SQ
40
0.85
Order Sample
LC6640-MF
600*600*40
Dark Grey
SQ
40
-
Order Sample
LC6640-MF
600*600*40
Yellow
SQ
40
-
Order Sample
LC6640-MF
600*600*40
Green
SQ
40
-
Order Sample
LC2240-MF
610*610*40
Green
SQ
40
0.85
Order Sample
LC6240-MF
600*1200*40
Green
SQ
40
0.85
Order Sample
LC2440-MF
610*1220*40
Green
SQ
40
0.85
Order Sample
LCX6643-MF
600*600*43
Green
SQ
42
0.85
Order Sample
LCX2243-MF
610*610*43
Green
SQ
42
0.85
Order Sample
LCX6243-MF
600*1200*43
Green
SQ
42
0.85
Order Sample
LCX2443-MF
610*1220*43
Green
SQ
42
0.85
Order Sample
LCXX6253-MF
600*600*53
Green
SQ
41
0.9
Order Sample
LCXX2453-MF
610*610*53
Green
SQ
41
0.9
Order Sample
LCXX6253-MF
600*1200*53
Green
SQ
41
-
Order Sample
LCXX2453-MF
610*1220*53
Green
SQ
41
-
Order Sample
LCRF6640-MF
600*600*40
Green
SQ
40
0.85
Order Sample
LCRF2240-MF
610*610*40
Green
SQ
40
0.85
Order Sample
LCRF6240-MF
600*1200*40
Green
SQ
40
0.85
Order Sample
LCRF2440-MF
610*1220*40
Green
SQ
40
0.85
Order Sample
LCXRF6643-MF
600*600*43
Green
FL
42
0.85
Order Sample
LCXRF2243-MF
610*1220*43
Green
FL
42
0.85
Order Sample
LCXRF6243-MF
600*1200*43
Green
FL
42
0.85
Order Sample
LCXRF2443-MF
610*1220*43
Green
FL
42
0.85
Order Sample
LCXXRF6253-MF
600*600*53
Green
FL
41
0.9
Order Sample
LCXXRF2453-MF
610*1220*53
Green
FL
41
0.9
Order Sample
LCXXRF6653-MF
600*1200*53
Green
FL
41
0.9
Order Sample
LCXXRF2253-MF
610*1220*53
Green
FL
41
0.9
Order Sample
