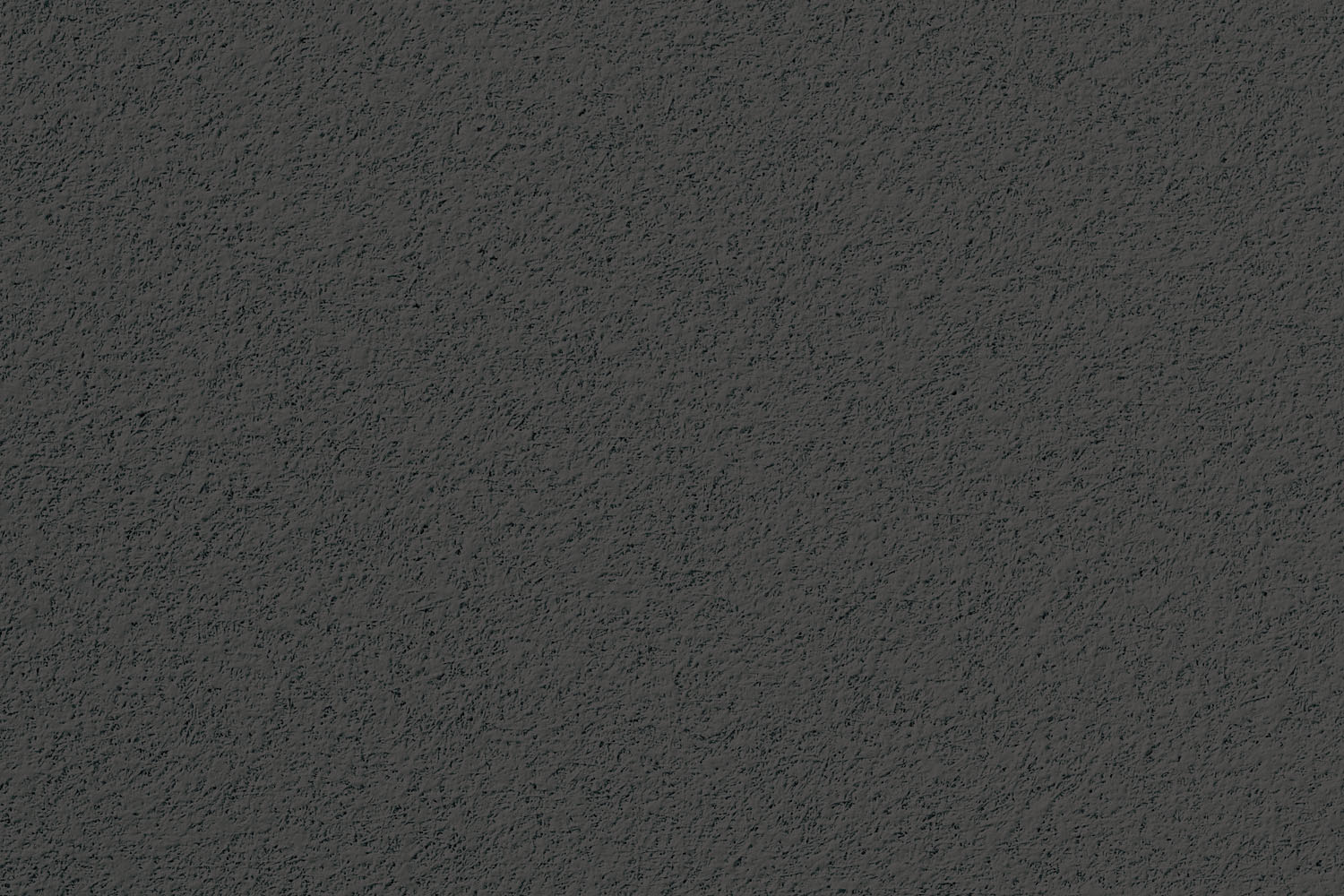

Louna™ Hi CAC Black Acoustical Ceiling - LCX6643B-MF

Louna™ Hi CAC Black Acoustic False Ceiling Tiles are designed to be durable and safe with common disinfectants. Made of Fire-rated Mineral Wool finished with Painted Fiber Glass scrim


Add to Bucket
Performance & Specifications Product Items Documents & Files Cad & Revit Installation
Features
  • Specifically engineered when high acoustic performance is required and satisfying high frequency performance criteria for cinema application.
  • Soft Fiber substrate and Wet Felted Mineral Fiber Substrate finished with Painted Fiber Glass scrim and sealed edge
  • Exceptional Sound Absorption with NRC values up to 0.9 and CAC up to 42dB
  • Impact & Scratch Resistant finish scrim
  • Available in Plank Sizes compatible with Logix Integrated Ceiling System
Specifications
Physical Properties
  • Materials Classification: Type: XII, Form: 2, Pattern: G
  • Substrate and Surface Finish: Mineral Wool substrate and Mineral Fiber substrate finished with painted fiberglass scrim
  • Thickness: 43mm, 53mm
  • Size: 600 x 600mm, 610 x 610mm, 600 x 1200mm, 610 x 1220mm
  • Edge Detail Trim: Square Encapsulated
  • Weight: 43mm [8.85 kg/m²], 53mm [12 kg/m²]
  • Noise Reduction Coefficient [NRC]: [0.85] [0.90]
  • Ceiling Attenuation Class [CAC]: [41 dB] [42 dB]
  • Mold Prevention Application as per ASTM D3273: Soft Fiber substrate is inherently resistant to the growth of mold and mildew
  • Humidity Resistance: Maximum 99% RH / 40°C for ClimaPlus
  • Color: Black Color similar to RAL 7021
  • Surface Burning Characteristics as per ASTM E84: Class A, Flame Spread: 25, Smoke development: 50
  • Thermal Resistance: 43mm [0.977m² °K/W - R 5.5], 50mm [1.176m² °K/W - R 6.6]
  • Washability / Scrubbability as per ASTM D4828 & D2486: Exceeds 1000 Wash/Scrub cycles without surface break or the extent of abrasion upon request
  • Relevant LEED Credit: EA Credit 1 | MR Credit 4| MR Credit 5 | MR Credit 6 IEQ Credit 3 | IEQ Credit 3.2 | IEQ Credit 4.6 | IEQ Credit 8.1 | IEQ Credit 9
Applications
  • Cinemas and operating theatres
  • Convention halls and concourses
  • Restaurants
  • Bowling Alleys
Catalogue

Item

Size

Color

Edges

CAC

NRC

LCX6643B-MF
600*600*43
Black
SQ
42
0.85
Order Sample
LCX2243B-MF
610*610*43
Black
SQ
42
0.85
Order Sample
LCX6243B-MF
600*1200*43
Black
SQ
42
0.85
Order Sample
LCX2443B-MF
610*1220*43
Black
SQ
42
0.85
Order Sample
LCXX6653B-MF
600*600*53
Black
SQ
41
0.9
Order Sample
LCXX2253B-MF
610*610*53
Black
SQ
41
0.9
Order Sample
LCXX6253B-MF
600*1200*53
Black
SQ
41
0.9
Order Sample
LCXX2453B-MF
610*1220*53
Black
SQ
41
0.9
Order Sample
